1992 RDP SR 200 Variable

SR200 RDP Variable Size Press

Complete Flexo plant:

Here is the list of equipment in Tennessee

1. RDP 260 10 Color Scratch Off Press 22” x 26 ½” web width ALI Reference #: 106357
2. RDP 200 6 color wb press. 22" x 20.5" ALI Reference #: 106354
3. RDP SR200 Variable Size Press ALI Reference #: 106355
4. 2019 Screen PT R4600S CTP ALI Reference #: 106356
5. Comco Commander 18 inch Flexo Press 6 Color ALI Reference #: 106358
6. Egan Flexo 4 Color 10.5” Press ALI Reference #: 106359
7. 2012 Mark Andy VPM 400 Video Plate Mounter ALI Reference #: 106360
8. Hamilton Hi-Line 8 station continuous collator ALI Reference #: 106361
9. Hamilton Hi-Line 6 station continuous collator ALI Reference #: 106362
10. Hamilton Hi-Line 8 Station Snap Collator ALI Reference #: 106363
11. Hamilton Hi-Line 8 Station Snap Collator ALI Reference #: 106364
12. 2004 MBO B26 Folder 6/4 Folder with Presser Stacker ALI Reference #: 106370
13. PMC Model L-1414 Die Cutter ALI Reference #: 106371
14. 1997 Universal Folder Gluer FG 1100 XL ALI Reference #: 106373
15. Advanced Web Roll Doctor ALI Reference #: 106372
16. 1997 Muller Minuteman 8 Pocket Stitcher with Cover Feeder ALI Reference #: 106374
17. 2013 Bandall Bander Type 48 30 30 ALI Reference #: 106375
18. Shanklin Shrink Tunnel Model T7F and Heat Sealer Model S26 ALI Reference #: 106380
19. Shanklin Shrink Tunnel Model T7H and Heat Sealer Model S24 ALI Reference #: 106381
20. Interlake Stitcher Model 93A ¾ ALI Reference #: 106381
21. (2) CVX Color Viewing Station ALI Reference #: 106388
22. Graphtec Wide Format Cutter ALI Reference #: 106391
23. Kelleigh Photopolymer Flexographic Platemaking Equipment and Kelleigh Model 240 Dryer (Chemical System) ALI Reference #: 106392
24. Strobbe Universal Offset Plate Bender and Strobbe Plate Punch ALI Reference #: 106393
25. Orbital X Anderson & Vreeland Photopolymer Flexographic Platemaking Equipment with CL50 Whirl A Way Polymer Removal System (Water Based System) ALI Reference #: 106394
26. Perfecta Cutter SEYPA 92 UC-2 Paper Cutter (Has electrical issues)
27. (2) Autographic Encoder
28. Stanford Doctor machine Model 152 (SN 4814368)
29. Micoprint Labeler I Label Affixer Model 19/INDL/LAB (SN 92-31)
30. Combination Scale and Pallet Wrapper
31. Metal Pallets
32. Pressure Seal Folder Sealer
33. Doyle Sheet Cleaner (Brand new still in crate)
34. Prisco Double Water R&R System, Double Tank (Brand new still in crate)
35. Prisco RO Water System
36. American Baler Vertical (Blue)
37. Baler Vertical (Green)
38. Maren Baler Horizontal (Green)
39. Stanford 7” x 20” 4 Color ALI Reference # 106365
40. Standford 8 ½” x 20” 3 Color ALI Reference # 106366
41. Stanford 11” x 20” 3 ColorALI Reference # 106367
42. Standford 11” x 20” 3 ColorALI Reference # 106368
43. Standford 11” x 20” 3 ColorALI Reference # 106369

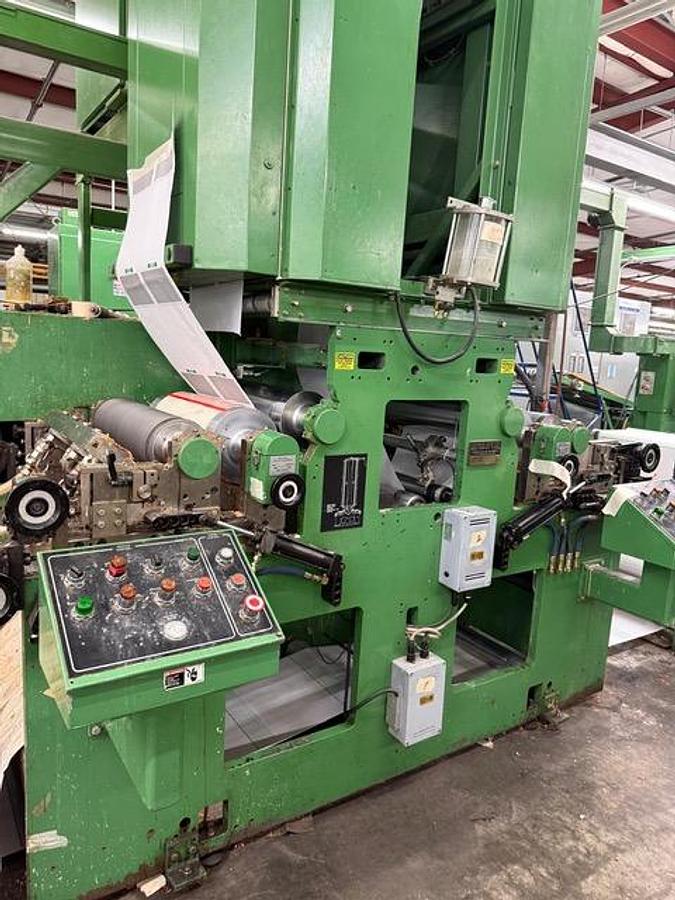

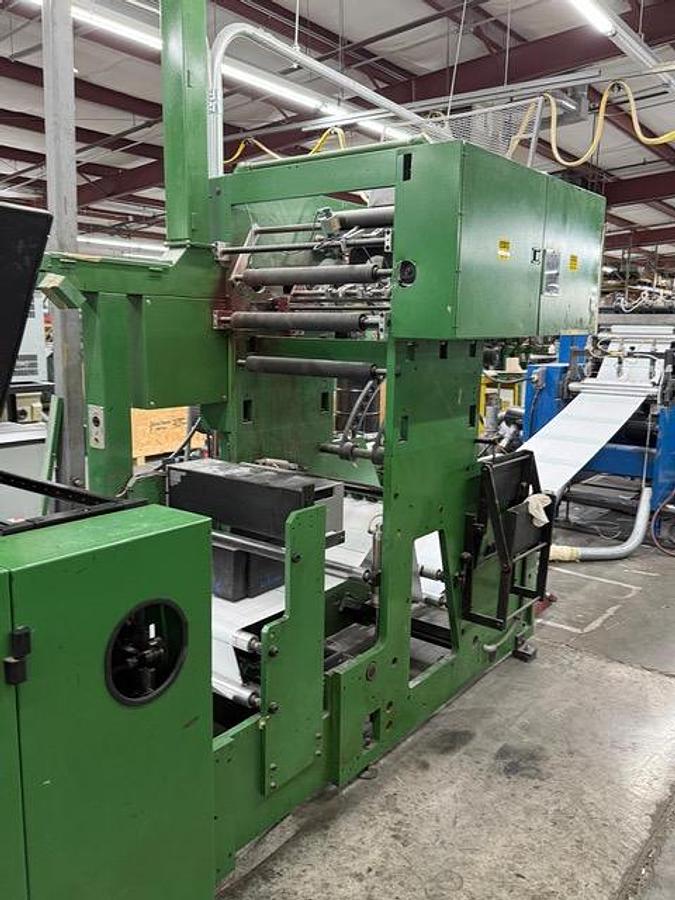

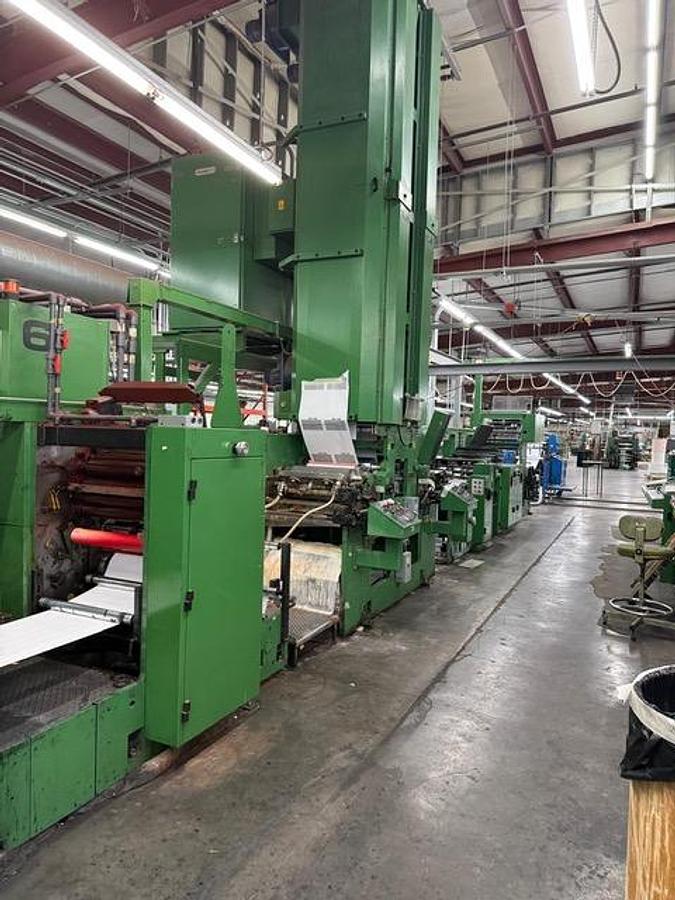

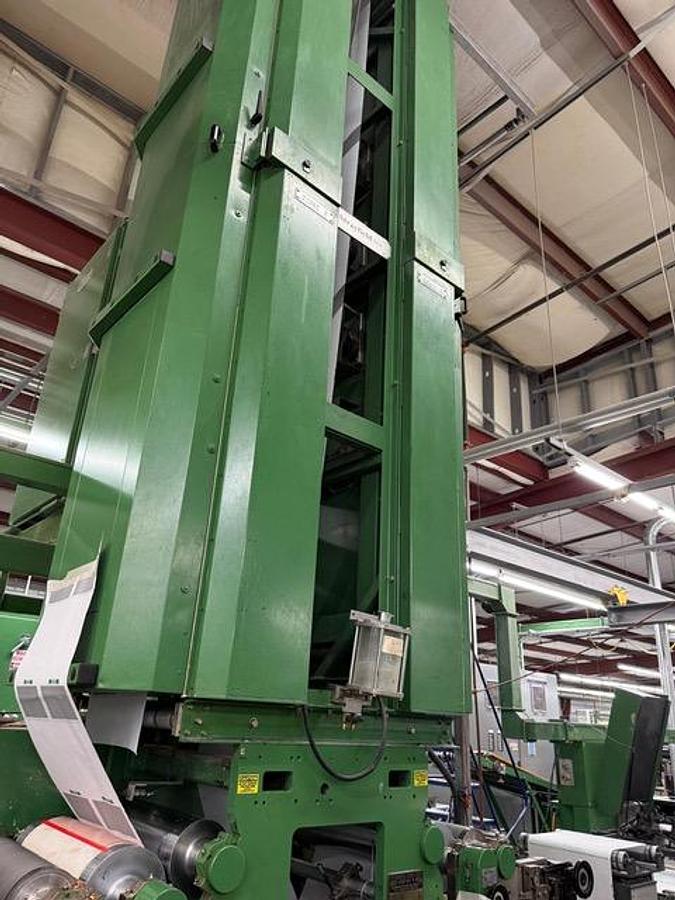

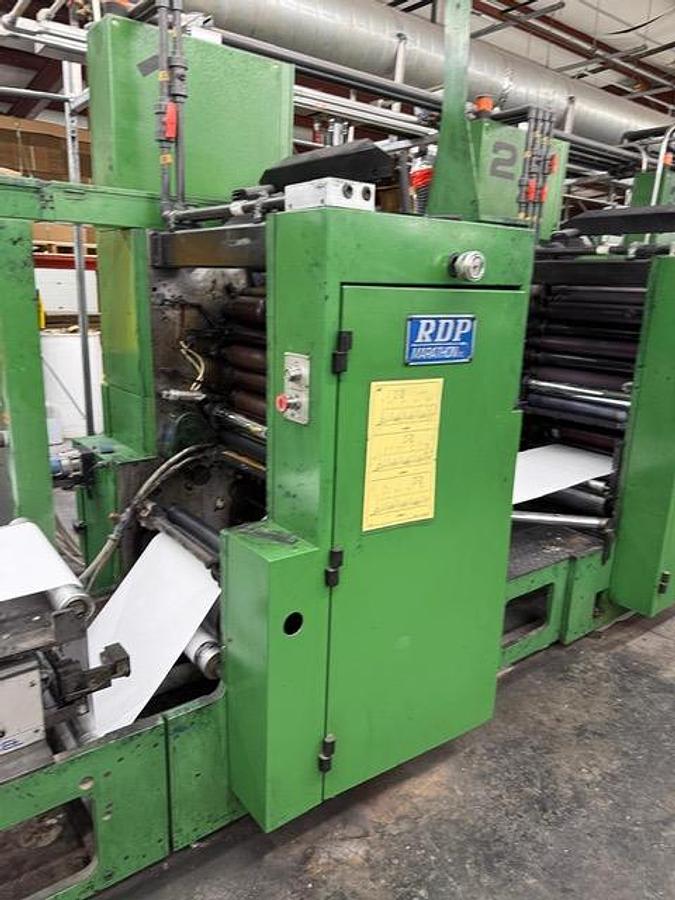

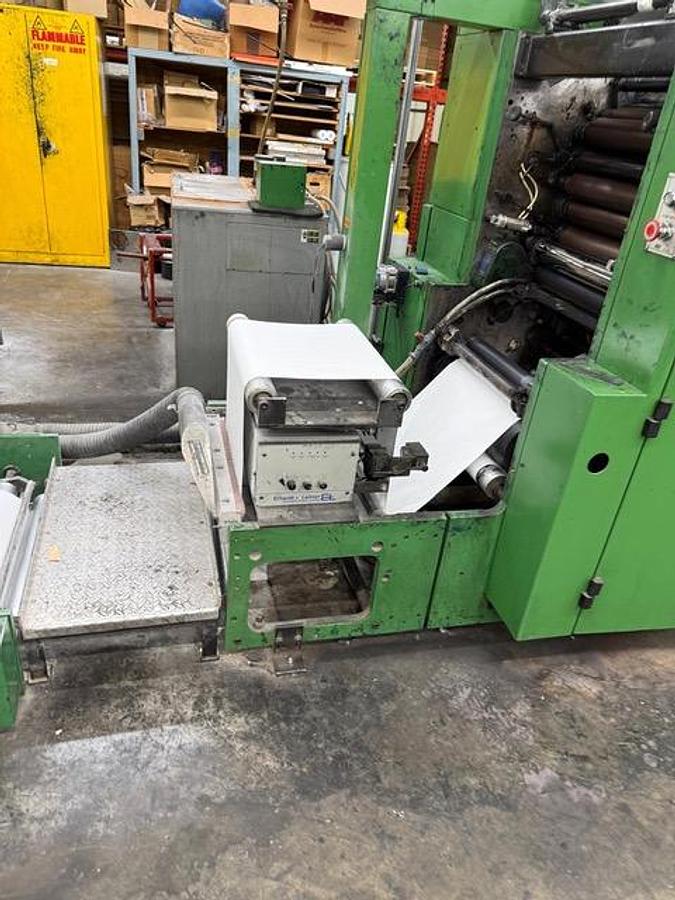

1992 SR200 RDP Variable Size Press

Cylinder Size - 17", 22", 28"

Very little use on machine

Pressure Sensitive

Postcards

Government 1099 forms

General

Speed - Mechanical Drive -50fpm to 1200fpm

Gear Lubrication - Continuous Oil bath

Drive Train - Shaft with flexible steel disk couplings at gear boxes

press Drive - Electric DC Drive

Max web width - 20 1/2"

Max print width - 20"

Cylinder Size - 17", 22", 28"

Web Break Detectors - Electric eye style mounted over the web

Frames - 1.25" Steel (2P inside frames)

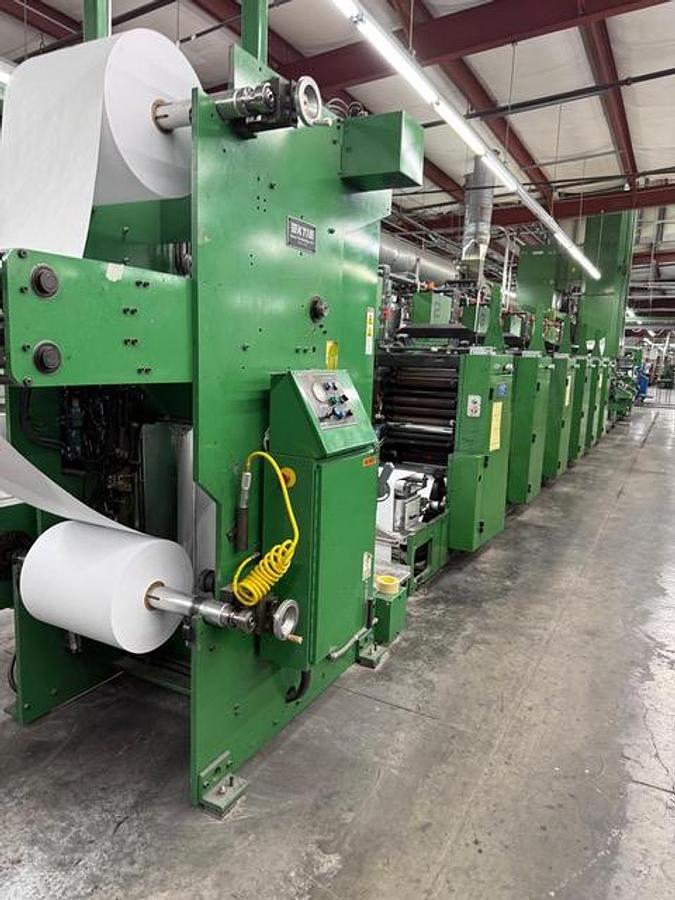

Unwind

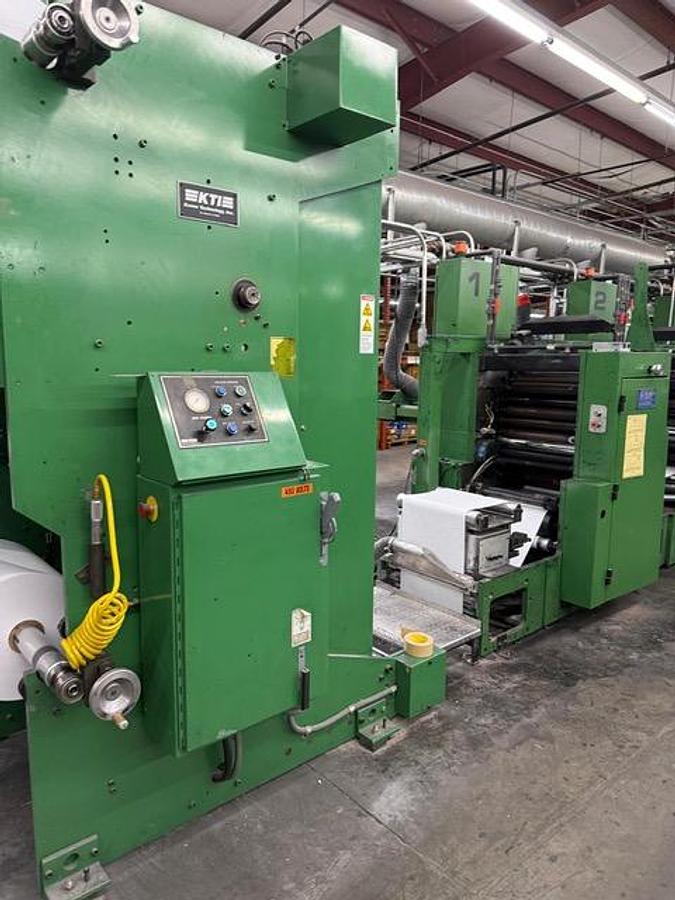

KTIMode11.S2150.BAutomaticLapSplicer

Max web Width - 21"

Max roll Diameter - 50"

Sized to lift 21 web width (50" diameter)

Inside core diameter - 3", 5"

Programmable decurler

Doyle two-sided web cleaner

E & L Electronic web guide

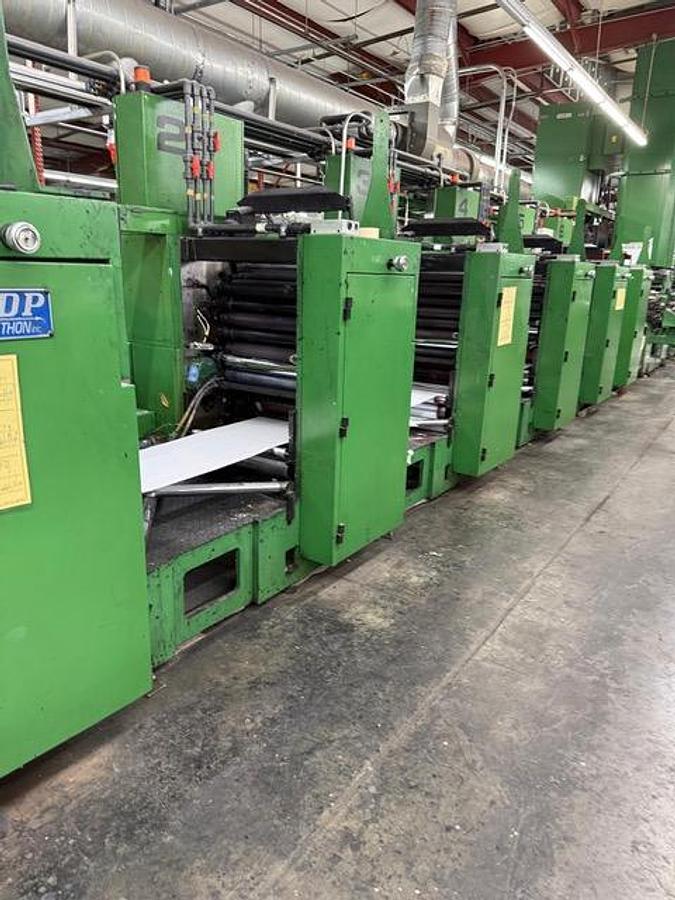

Print Units

NO. print Towers 6

Print Insert Sizes - 17", 22", 28" (6 of each size)

Four form roller system

Reel-in Blankets

Motorized Circ. Register with remote control Motorized plate side lay with remote control plate cylinder skewing and form roll adjustment Auxiliary Unit drive motors

360 deg circumferential gear boxes

Centralized, refrigerated recirculator

Chilled oscillators

Dahlgren dampening system

Chilled vibrators (Tri Service Chiller)

Ink Agitators • Auto ink roll wash-up

Numbering Inserts

One each Of 17” , 22” and 28” - used in last print tower

Two 6” marginal sleeves of each size.

Back Printing

Turn bars between units I & 2, 2 & 3, and 3 & 4

UV Dryers

Prime UV 400-600 watt curing system

Prime Smart system control

Inter-station drying

Coater/Dryer

IDC Model* SFC-205 (2 coating heads for front & back)

proctor Strayfteld two-sided Radio Frequency Dryer

Cylinder sizes - 17", 22", 28"

Web Viewer

BST Promark Eagle two-sided web viewer

Other in-line features

Linehole punching (one)

Provision for die insert

Vertical perfs (2 Shafts)

Double filehole unit (Can substitute magnetic diecut cylinders)

Two cross perf inserts (Can substitute magnetic diecut cylinders)

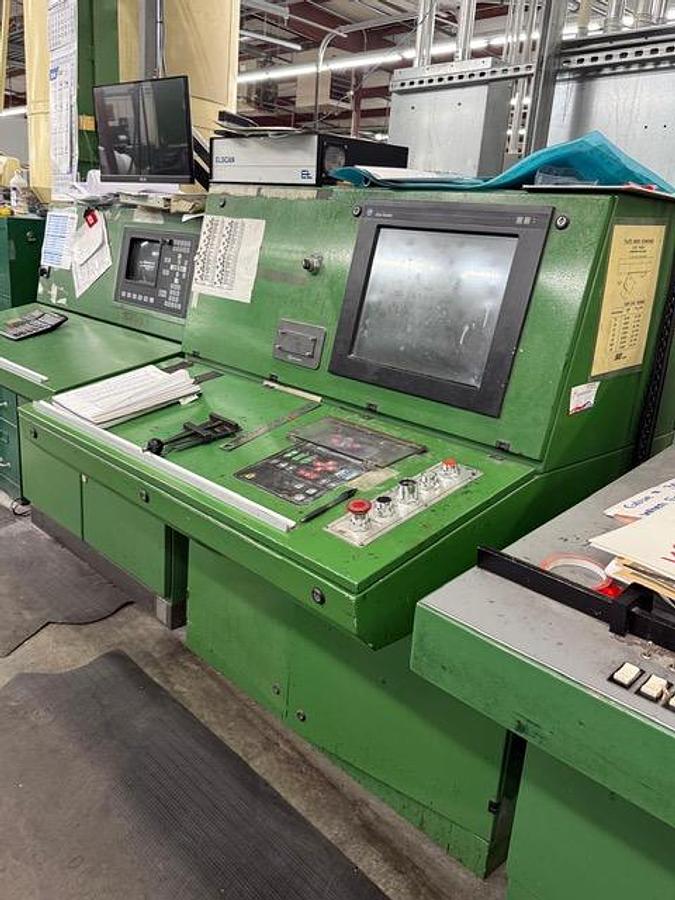

Automatic Register Control & Console

Ink Key Control & Console

Press Contorl Console

Rewind

50” Rewinder

Folder

Fordyce Folder

Sheeter

ESS Pantec sheeter (Starwheel type)
