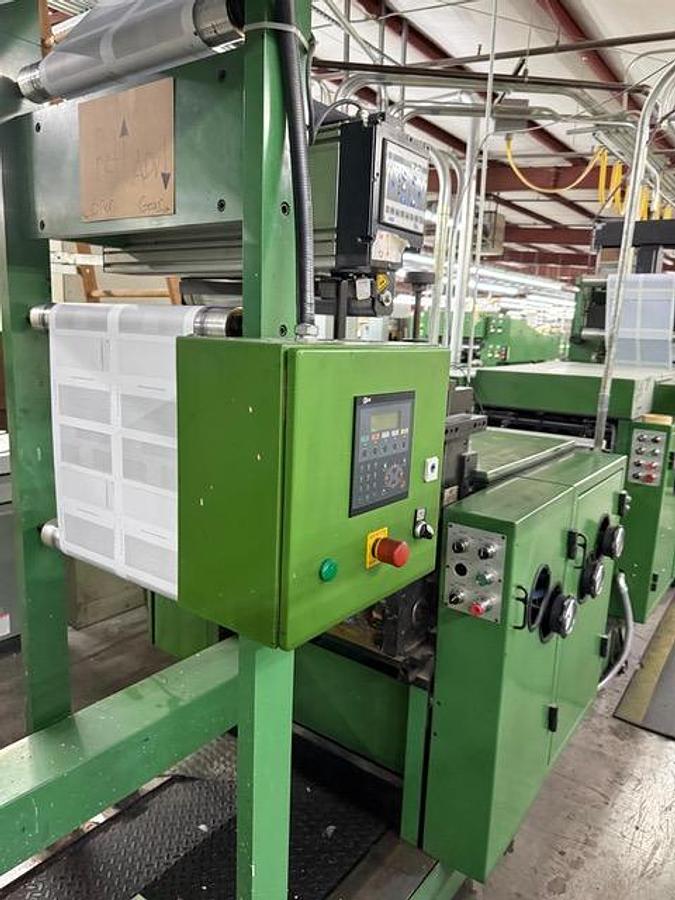

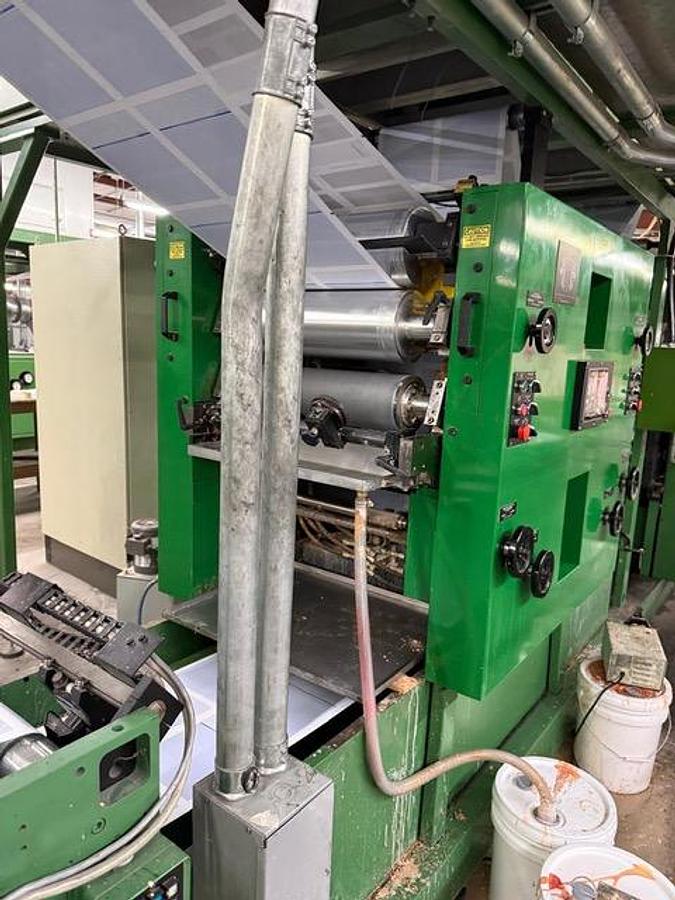

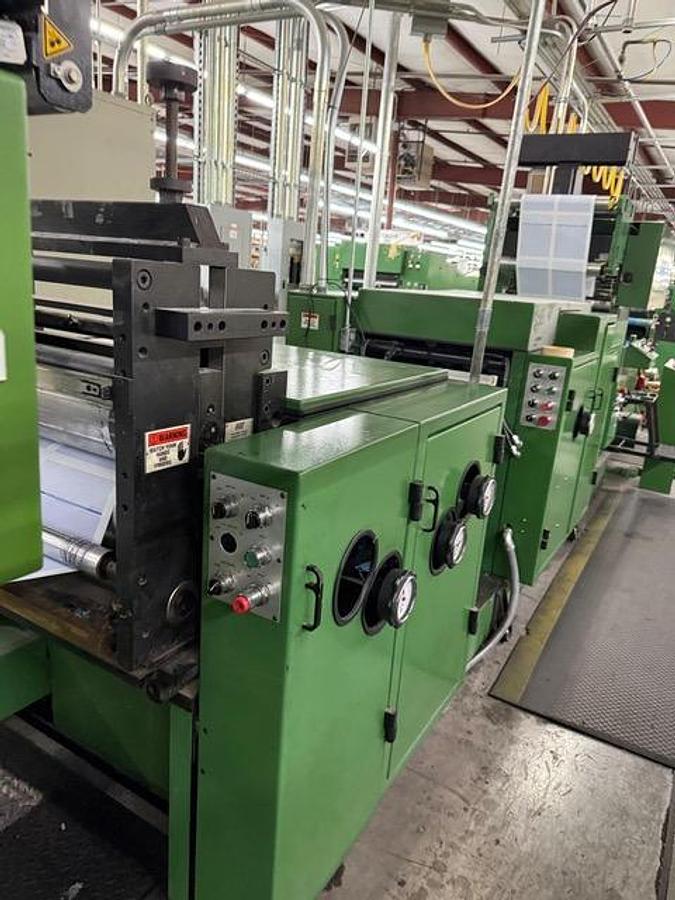

2018 RDP 200

RDP 200 6 color wb press. 22" x 20.5"

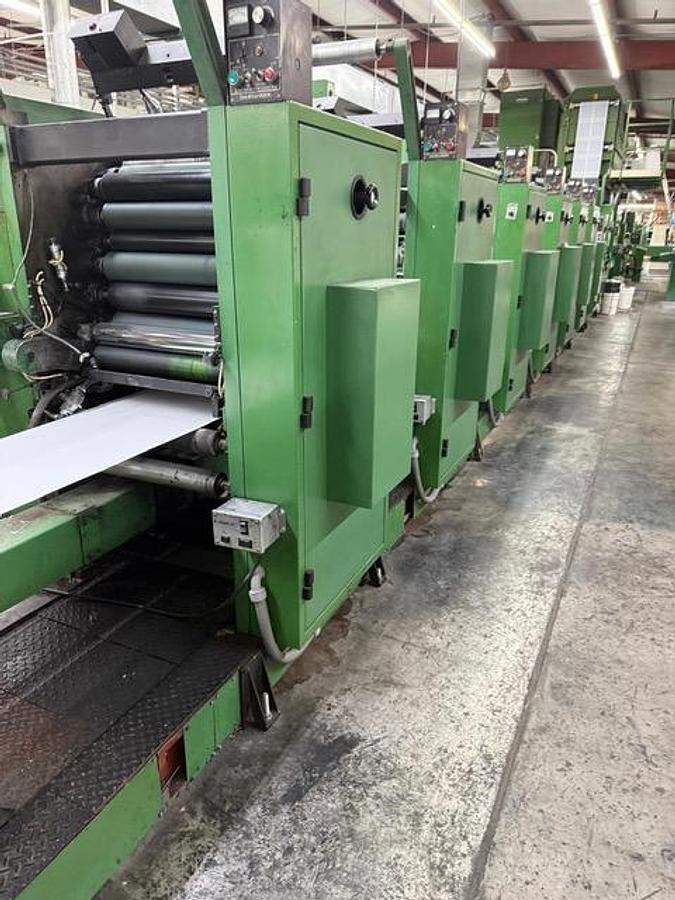

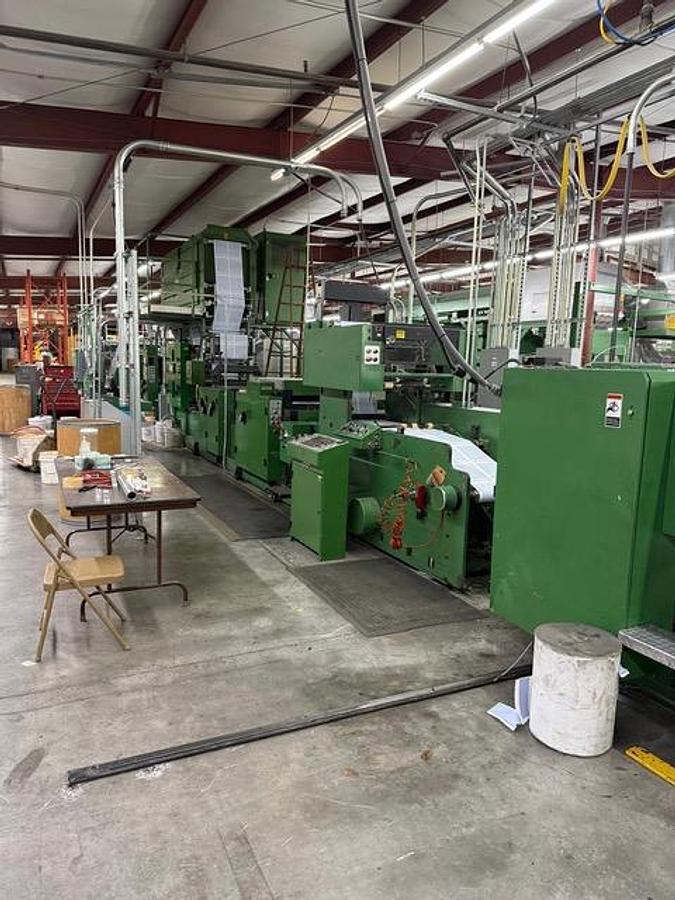

1992 / 1997 / 2006 / 2018 RDP 200 6 Color Press with Interflex Double Coater

(6 color double numbering front & bock) 22” x 20.5” web width

Well equipped for:

Pressure sealer mailers

Security envelopes

1099 Forms

Post Cards

Purchased in 1992 with 2 units

1997 2 units rebuilt for UV and UV Dryers. Also Adding 4 more UV Units

2006 modified for pressure seal production. Two cohesive applicators and two RF dryers.

2018 two Interflex coaters we added.

General

•      Speed - Mechanical Drive -50fpm to 1500fpm

•      Gear Lubrication - Continuous oil bath

•      Drive Train - "lilbular drive shaft with flexible steel disk couplings at gear boxes

•      Press Drive - Electric DC, Drive

•      Max web width - 20 1/2"

•      Max print width - 20"

•      Print cylinder circumference - 22" Web Break Detectors - Electric eye style mounted over the web

•      Frames - 2" thick cast iron (28" inside frames)

Unwind

•      Max web Width — 20.5"

•      Max roll Diameter - 50"

•      MaxRoll Weight . 1500*

•      Inside core diameter • 3", 5" • Programmable decurler

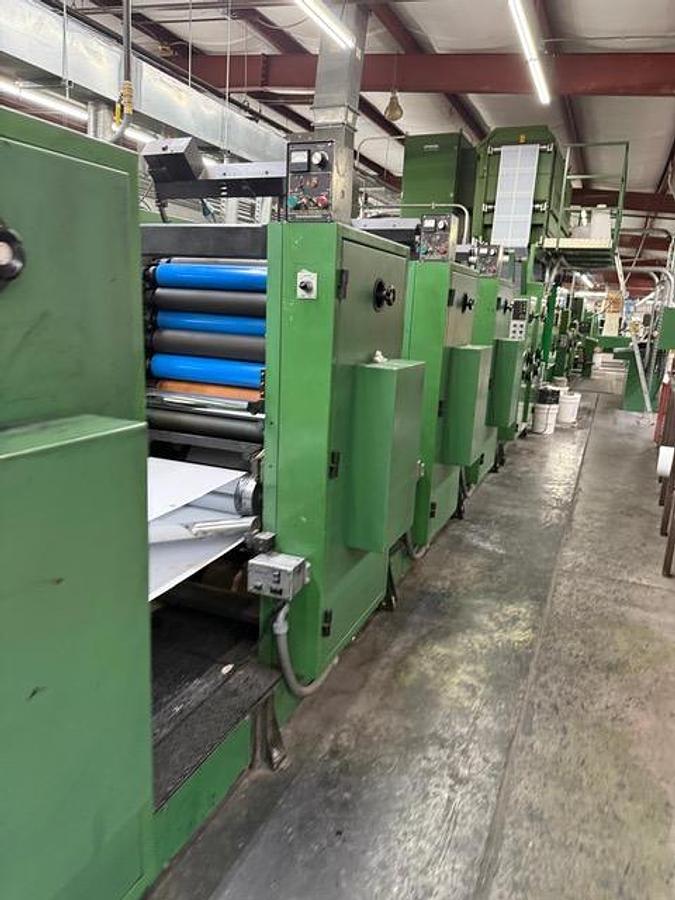

print units

NO. Units - 6

Reel-in Blankets

Motorized Circ. Register With remote control

Motorized plate side lay With remote control

Plate cylinder skewing and form roll adjustment

Auxiliary Unit drive motors • 360 deg circumferential gear boxes

Dahlgren dampening system

Chilled vibrators each unit (Tri Service Chiller)

Ink Agitators • Auto Ink roll wash-up

Back Printing

Hockey Sticks on units 1 & 2

Turn Bars between units 2 & 3 and umts 3 & 4

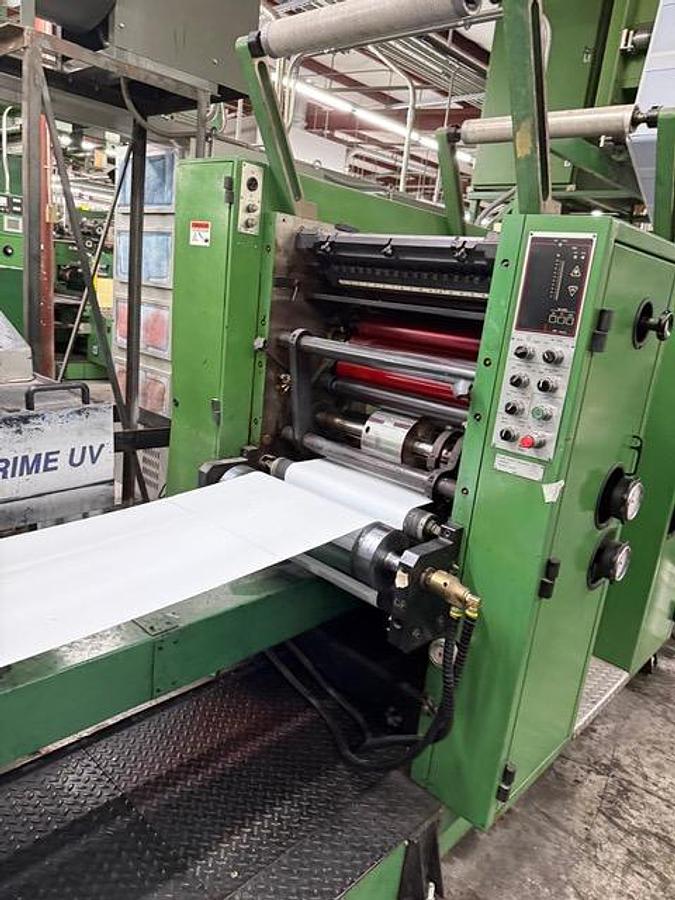

UV Dryers

•      Prime UV 400-600 watt curing system

•      Prime Smart system control

•      Inter-station drying

Pressure Seal Cohesive Application Equipment

•      Interflex Double Coater (2018) Strayfield Pastron RF Dryer

•      ESS magnetic die unit (perf flattening)

•      Removable-blade perf cylinders for V, C and eccentric Z

Other In-Line Features

•      Interllex double ujater

•      Double numbering unit (constructed for arabic numbering, barcoding or marginals)

•      Double filehole unit (one fixed and one removable cartridge) Linehole punching (one) provision

for die insert

•      Vertical perfs (2 shafts)

•      TWO cross perf cylinders

Register Control

•      QTI video register control

Rewinder

•      Rewinder 50"

Folder

Fordyce VS 1320 single stream

Max web width - 20 112"

Rewind

•      GEC Auto Turret Rewinder

•      Max roll diameter 50"

•      Shaft for 3", 5", 6" ID core

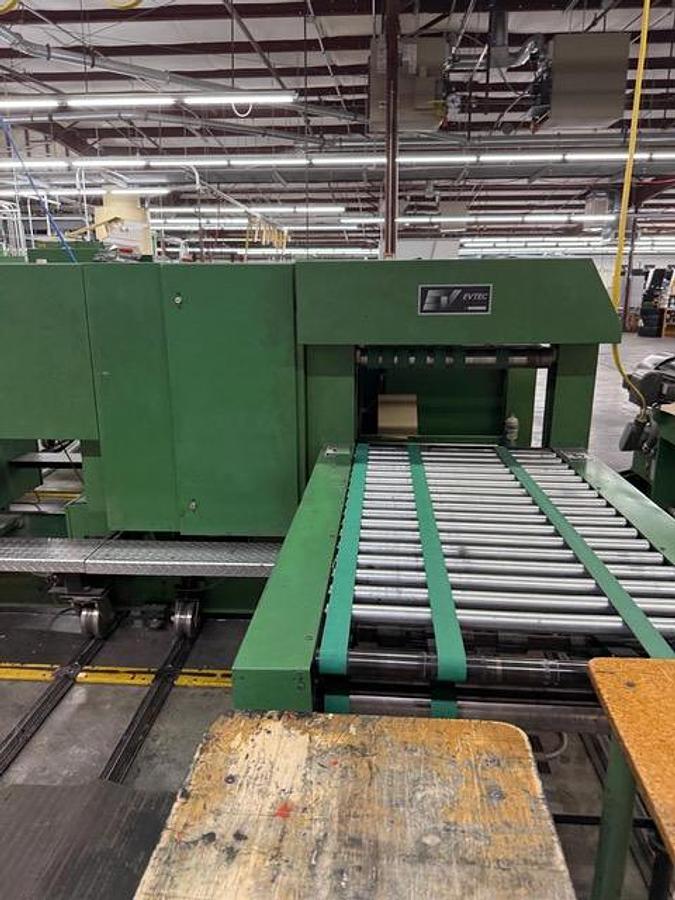

Sheeter

•      Evtec Mode 1EC/EB 2028 Sheeter/Batcher Stacker
