2012 RDP 260

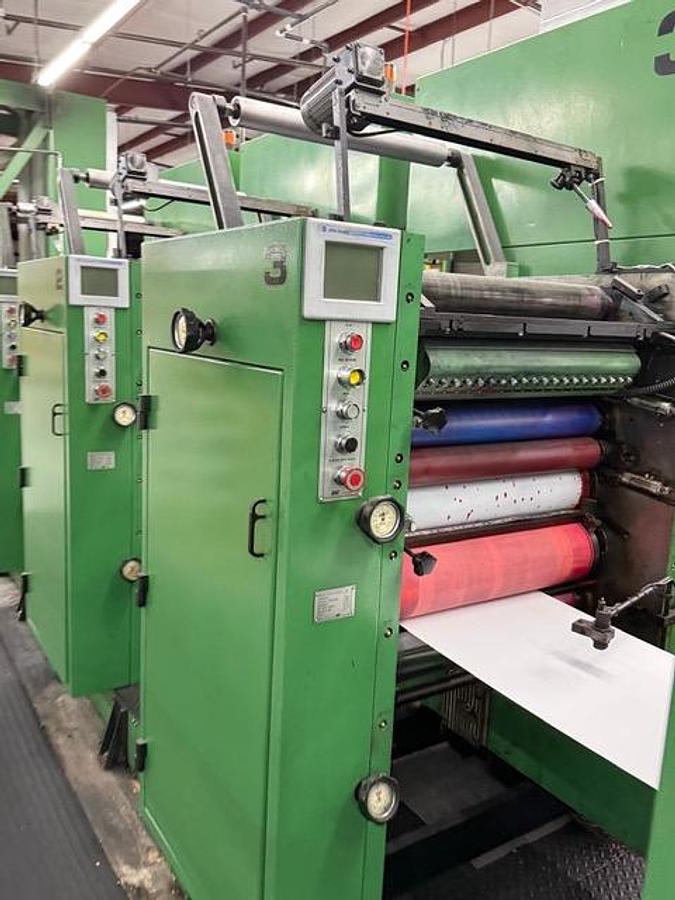

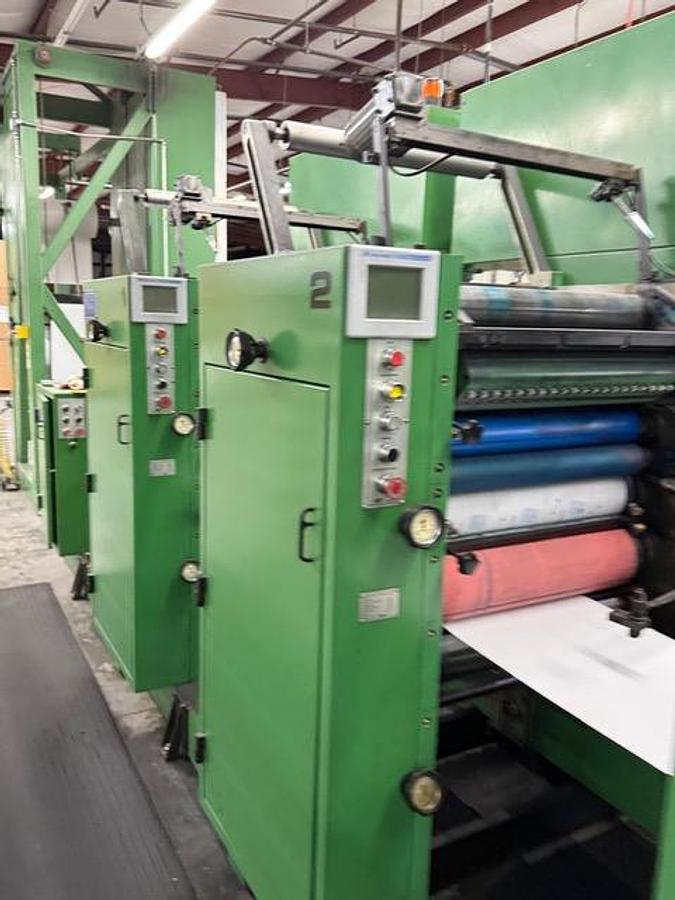

2012 RDP 260 10 color scratch off press

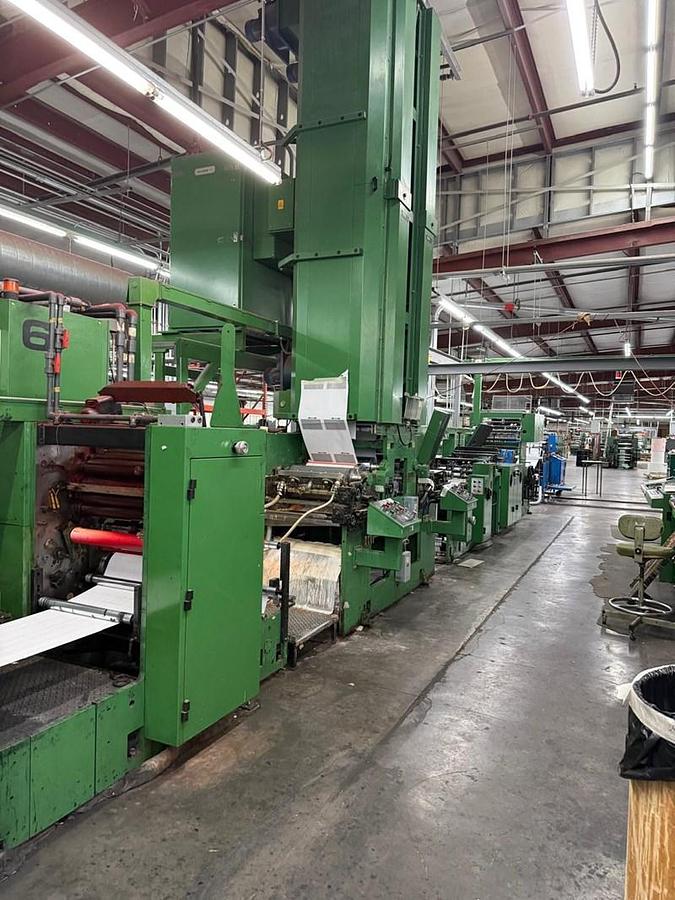

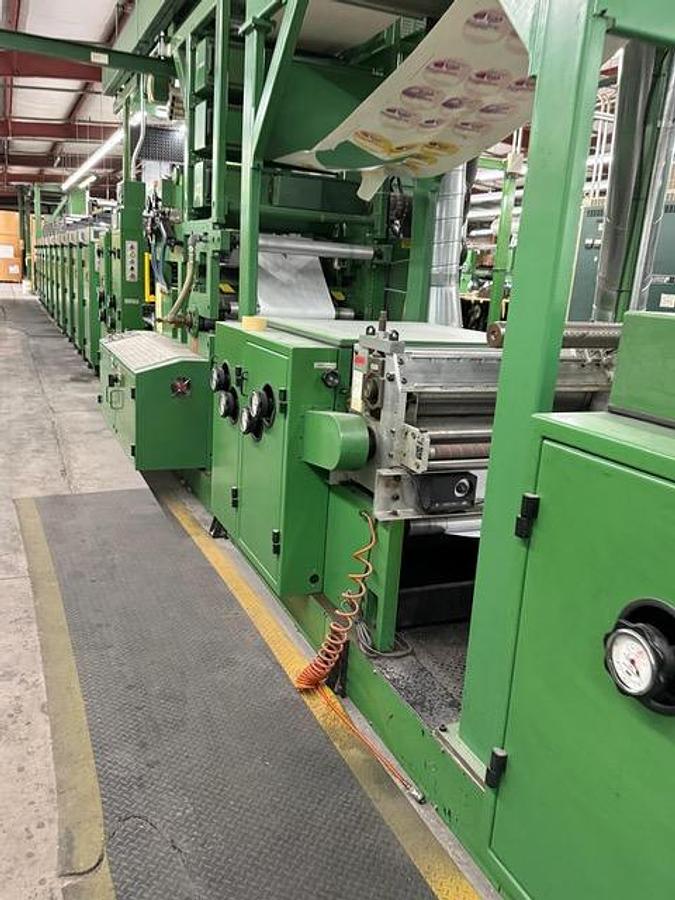

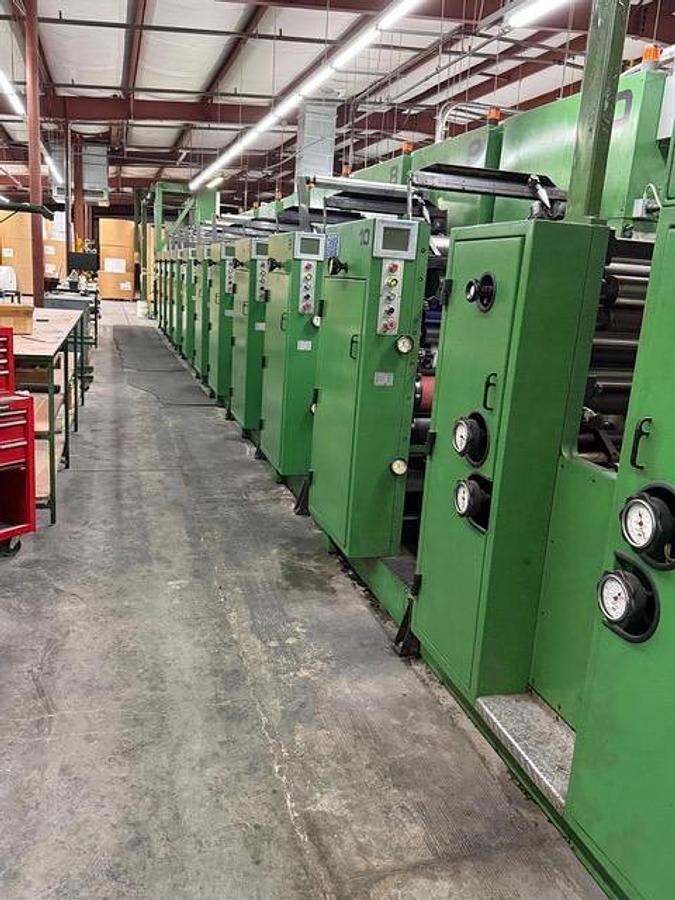

’92 / ’96 / 2012 / 2013 RDP 260 10 Color Scratch Off Press

22” x 26 ½”

Press was used for Presser Sealer Mailers, Lottery Scratch Offs, Number Coupons, Postcards and can be used for more.

Originally 1992 Purchased with 4 units

In 1996 4 original units rebuilt with UV. 6 more units were added for 10 units with UV. Also installed in 1996 was a applying re-moist, scratch off, and varnish, as well as UV and RF drying capabilities.

2012 Hot air drying was added for aqueous coating.

2013 two sided silicone applicator added.

General

Speed - Mechanical Drive -50fpm to 1500fpm

Gear Lubrication - Continuous oil bath Drive Train - Tubular drive shaft with flexible steel disk couplings at gear boxes.

Press Drive - Electric DC Drive 150 HP

Max web width - 26 1/2"

Max print width - 26"

Print cylinder circumference - 22" Web Break Detectors - Electric eye style mounted over the web ET web guide

Frames - 2" thick cast iron (34" inside frames)
