1994 gpss Magnum

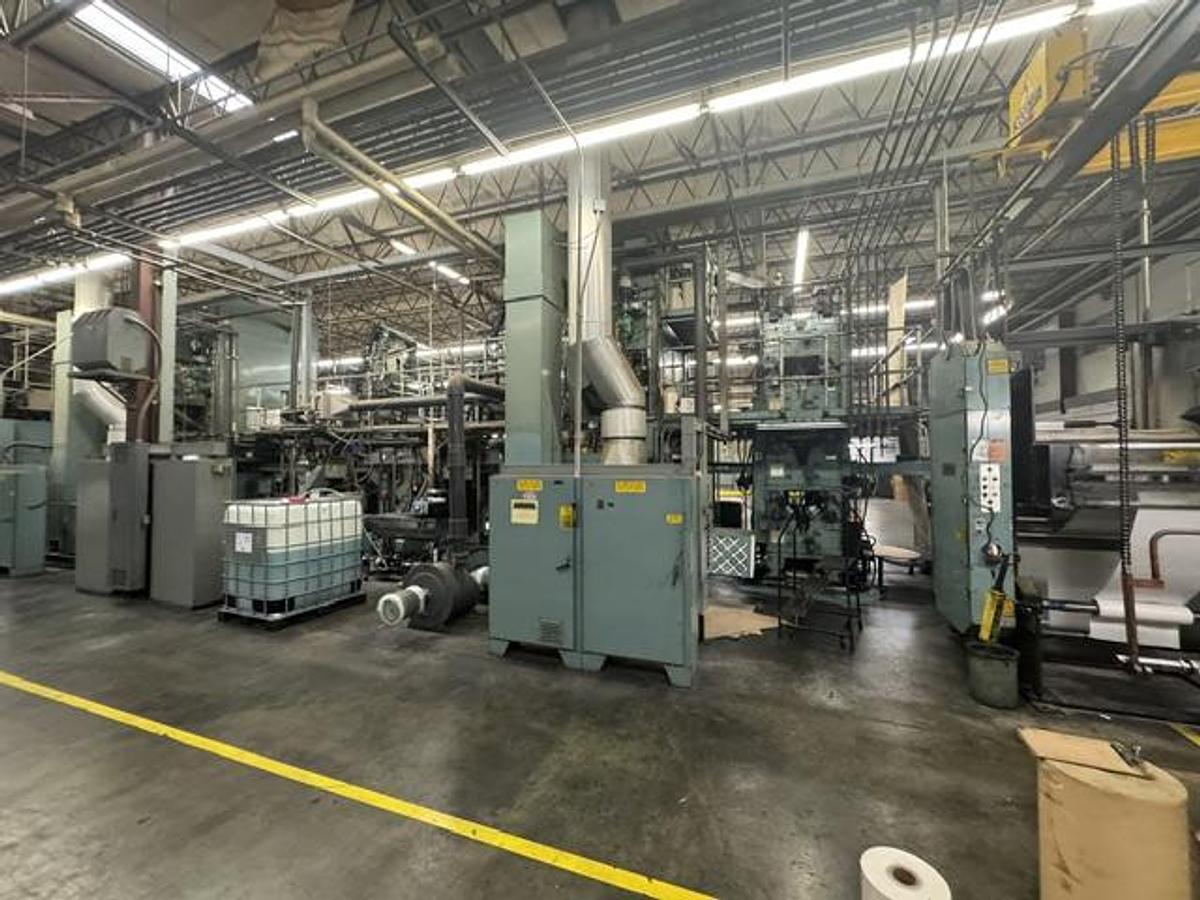

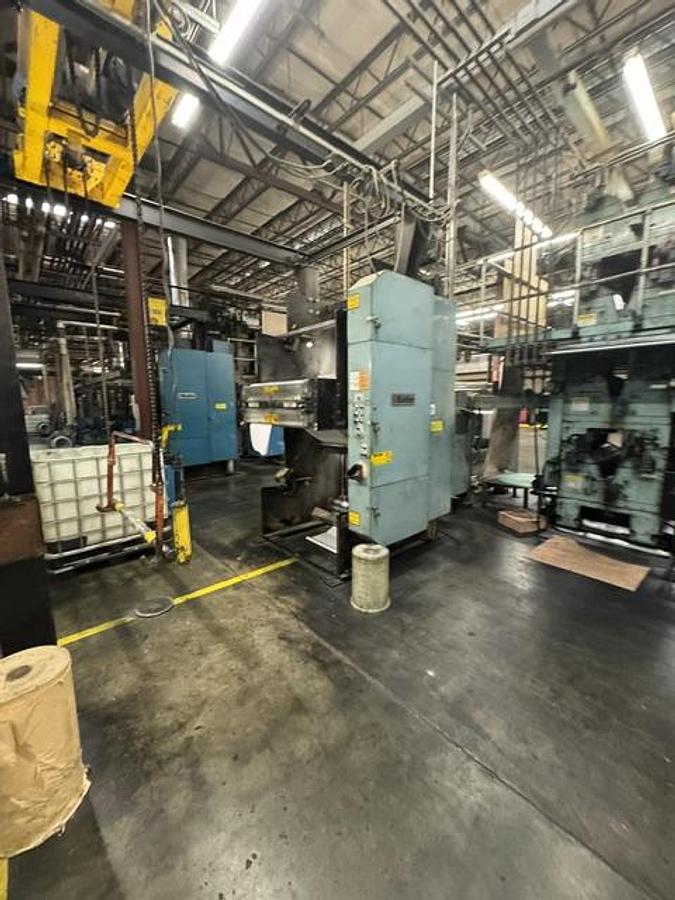

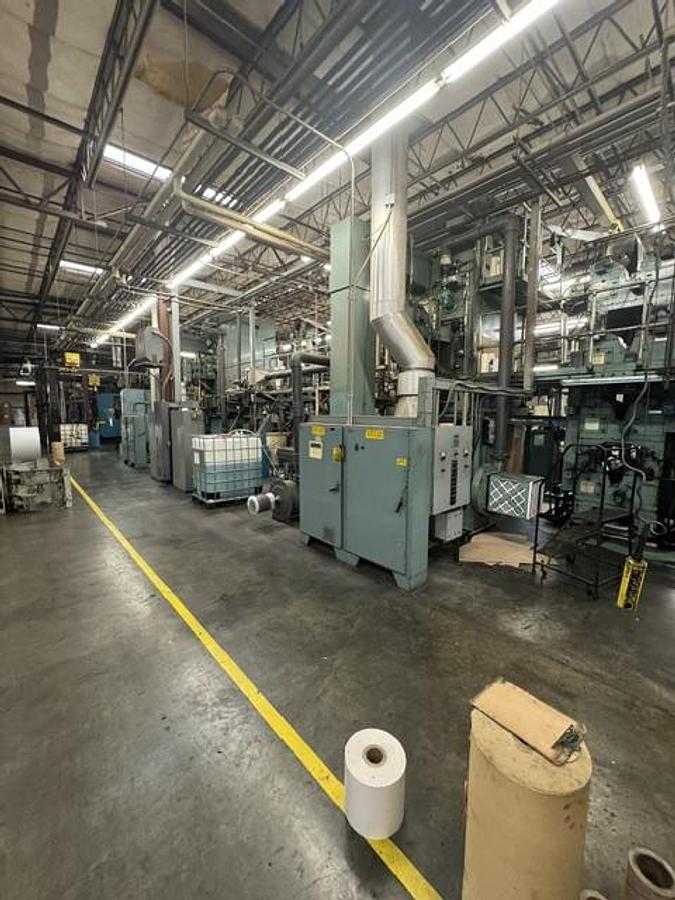

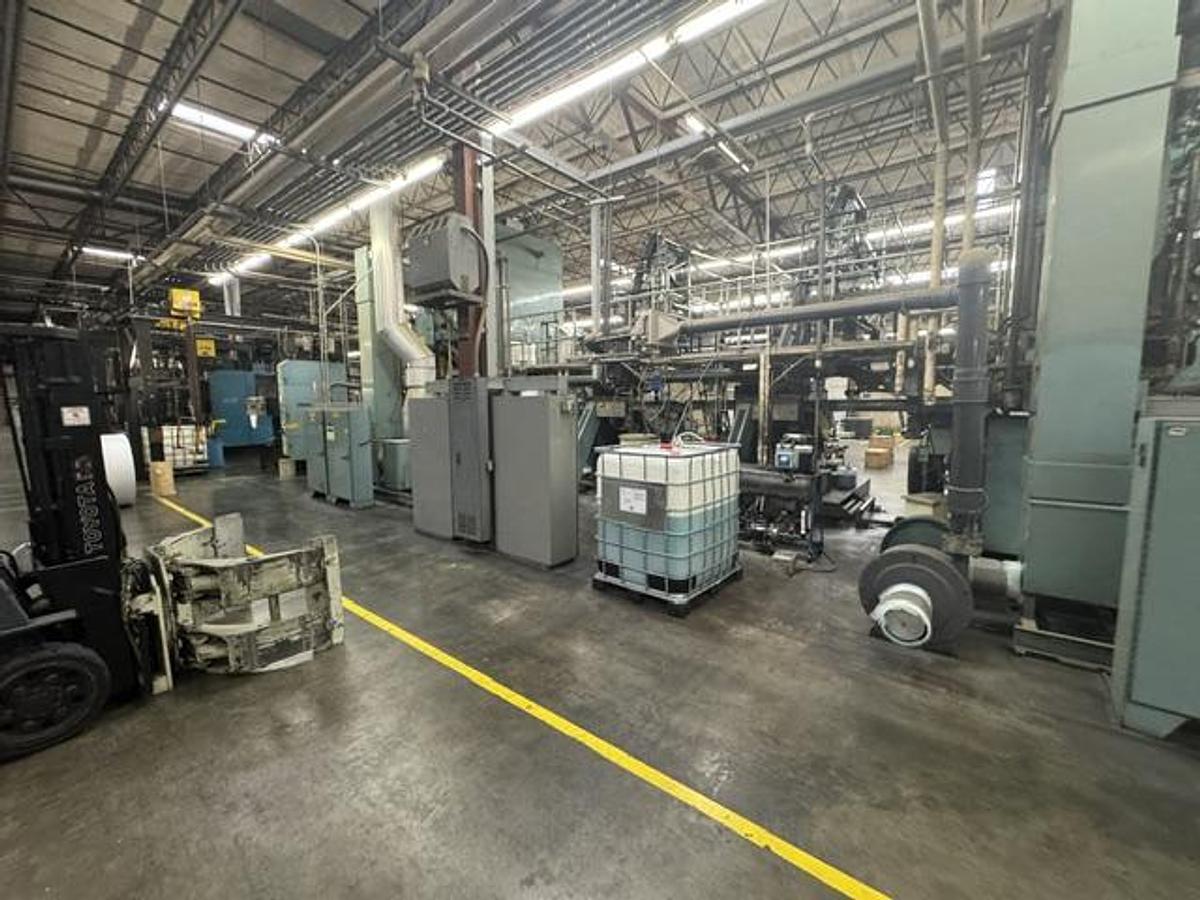

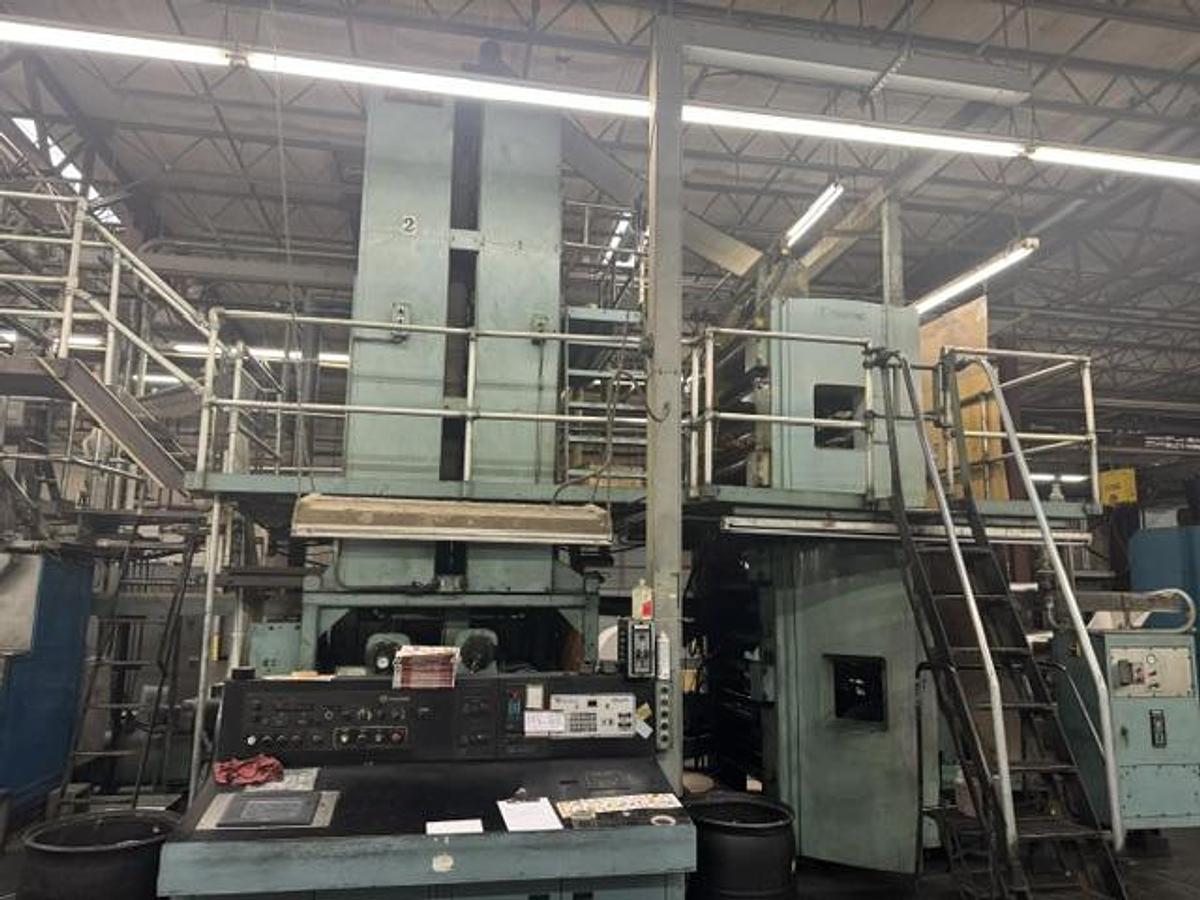

1994 Goss Magnum 21" x 35" Press Lines

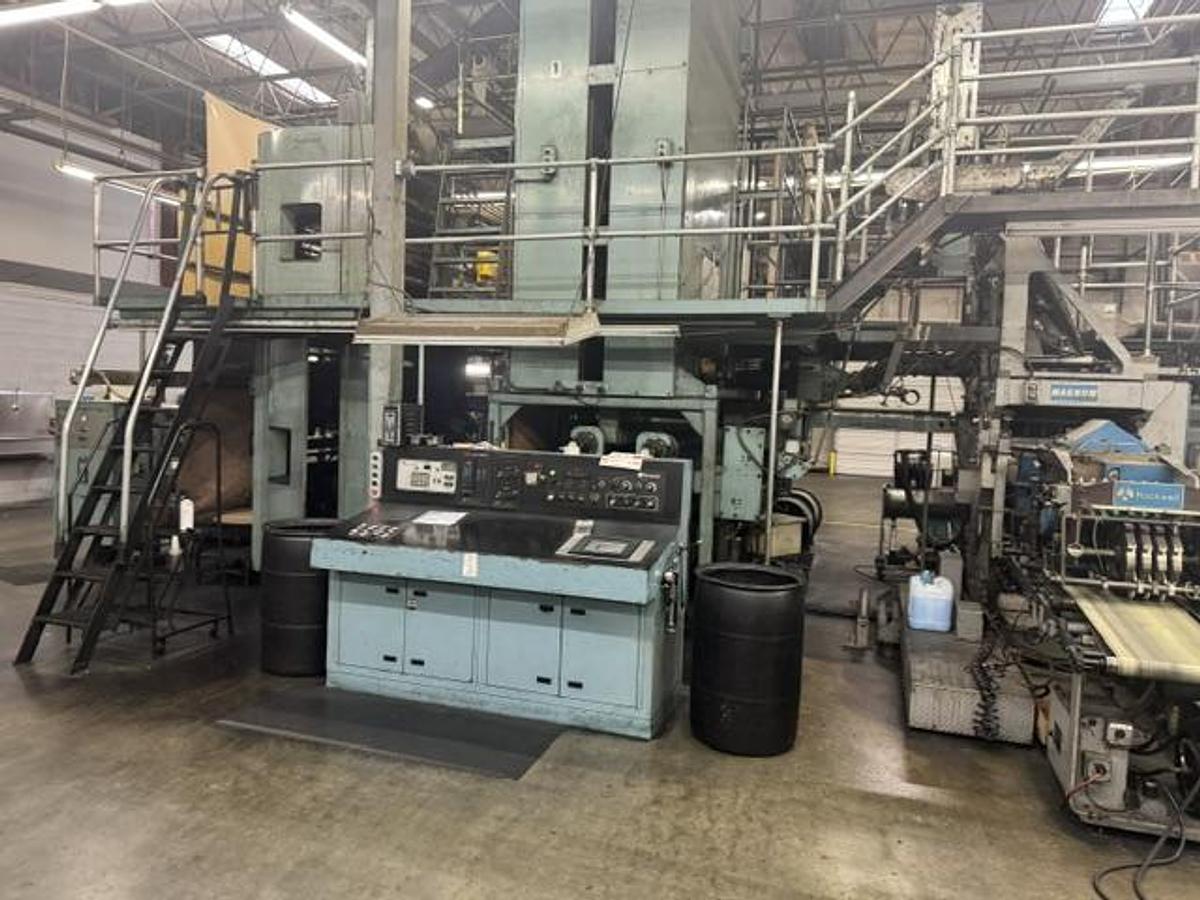

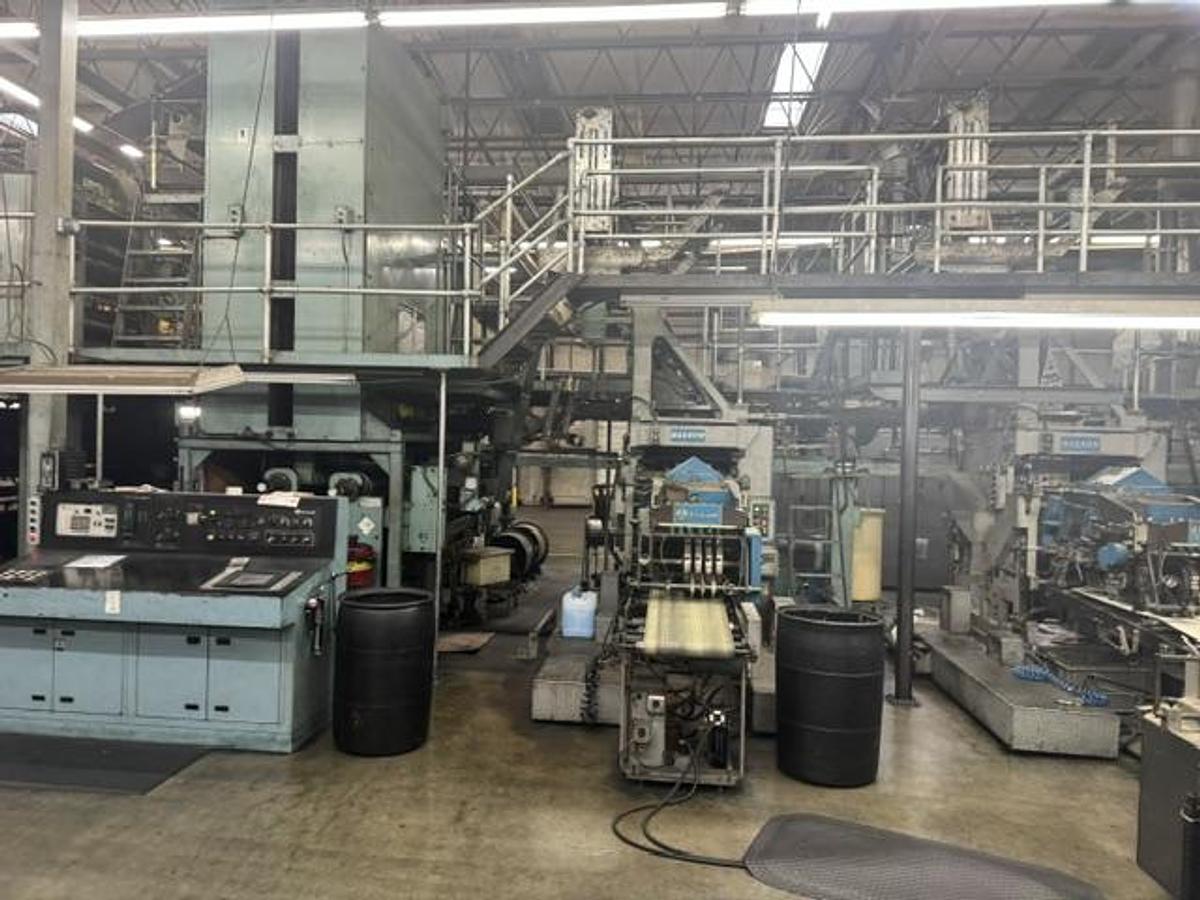

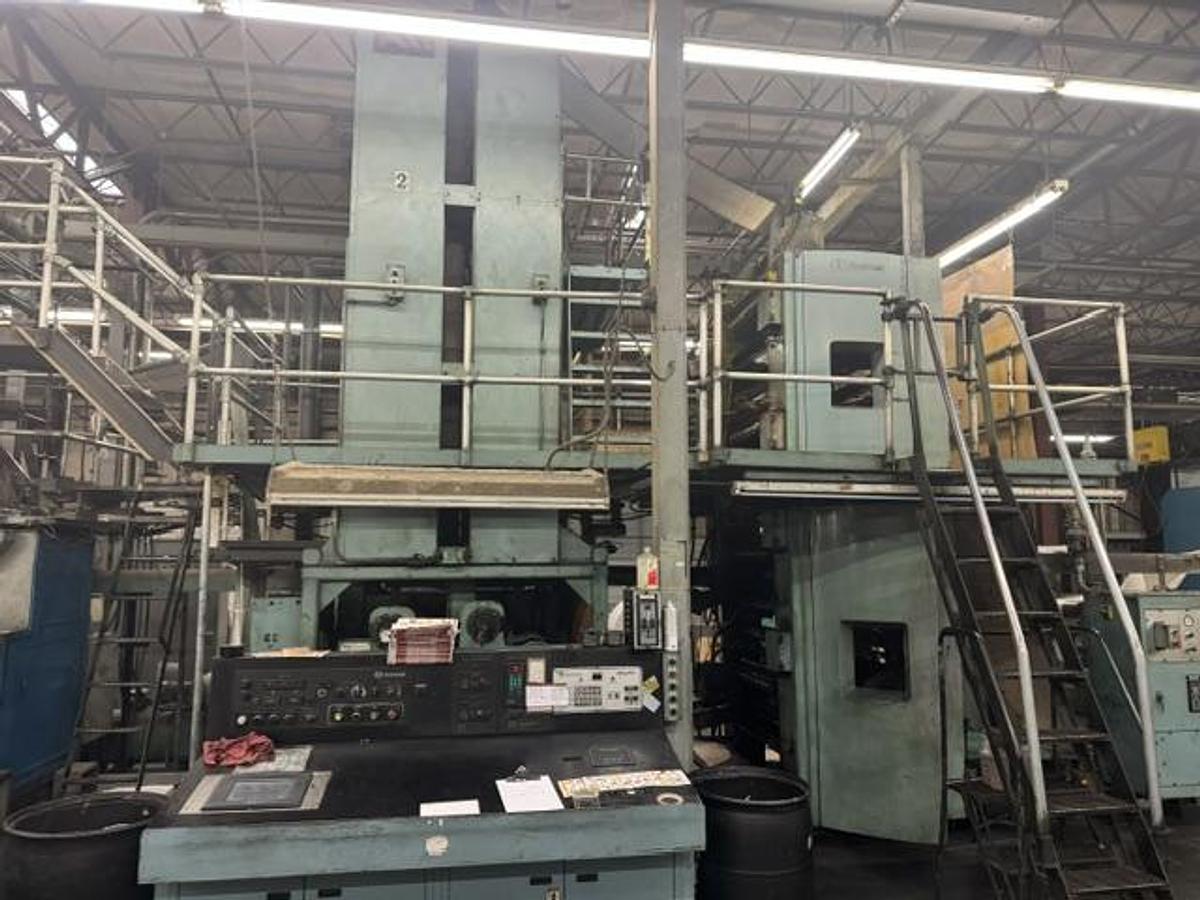

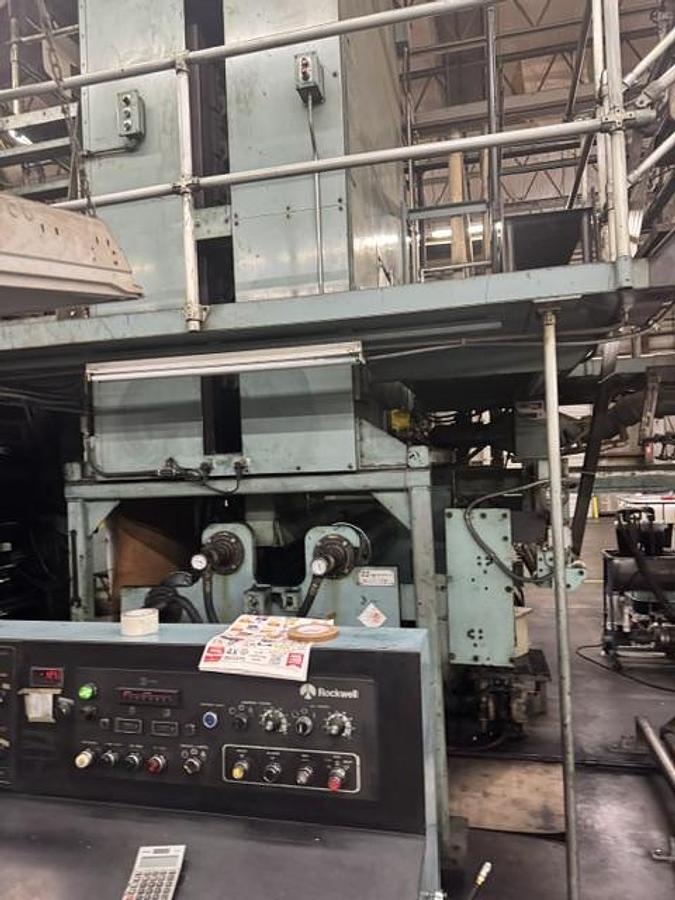

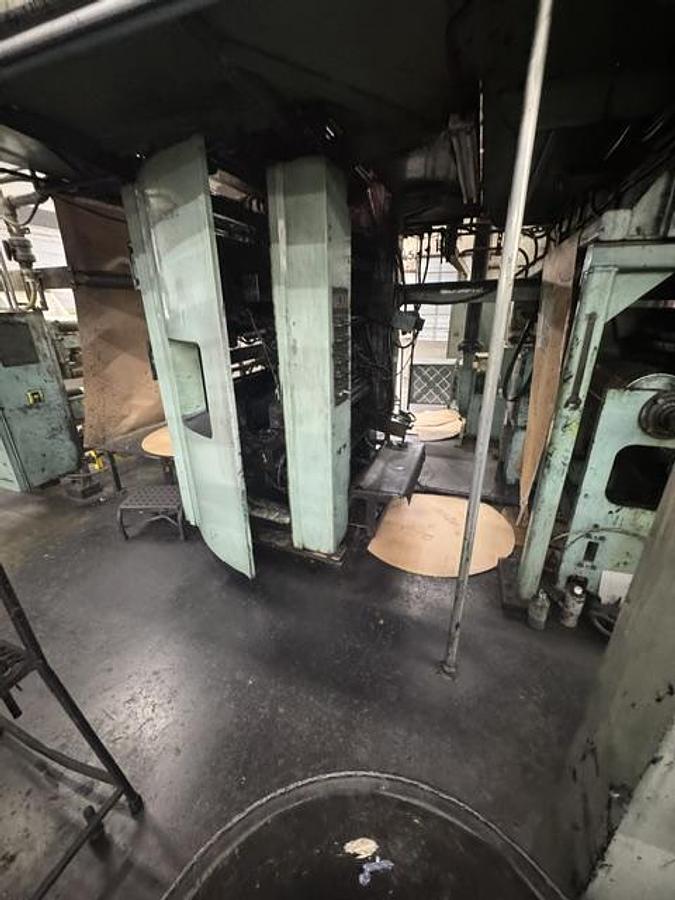

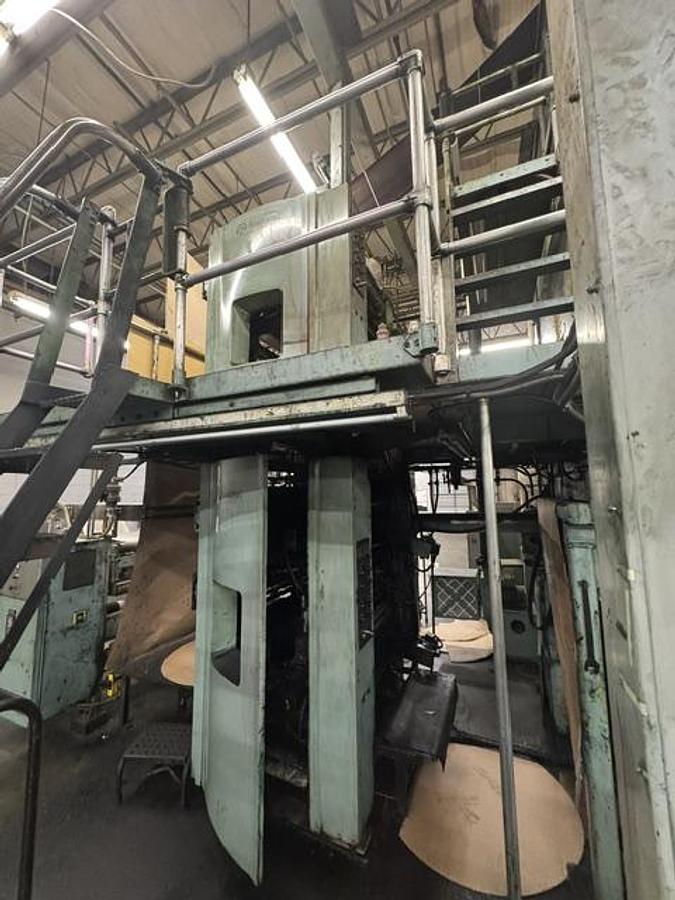

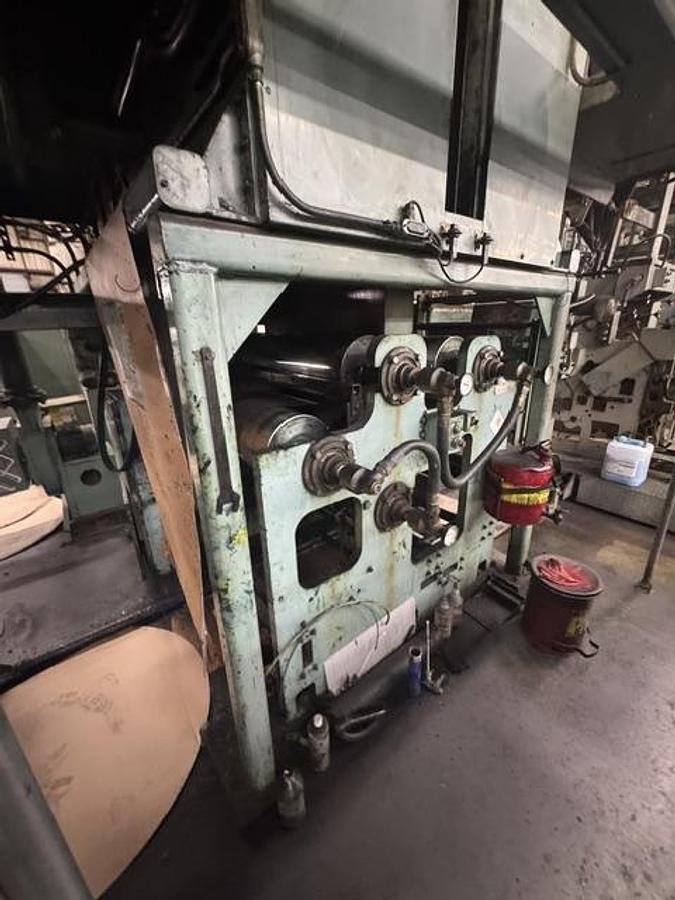

• Two (2) four high Goss Magnum stacked units rated @35,000 IPH.

Featuring brush dampening, pneumatic

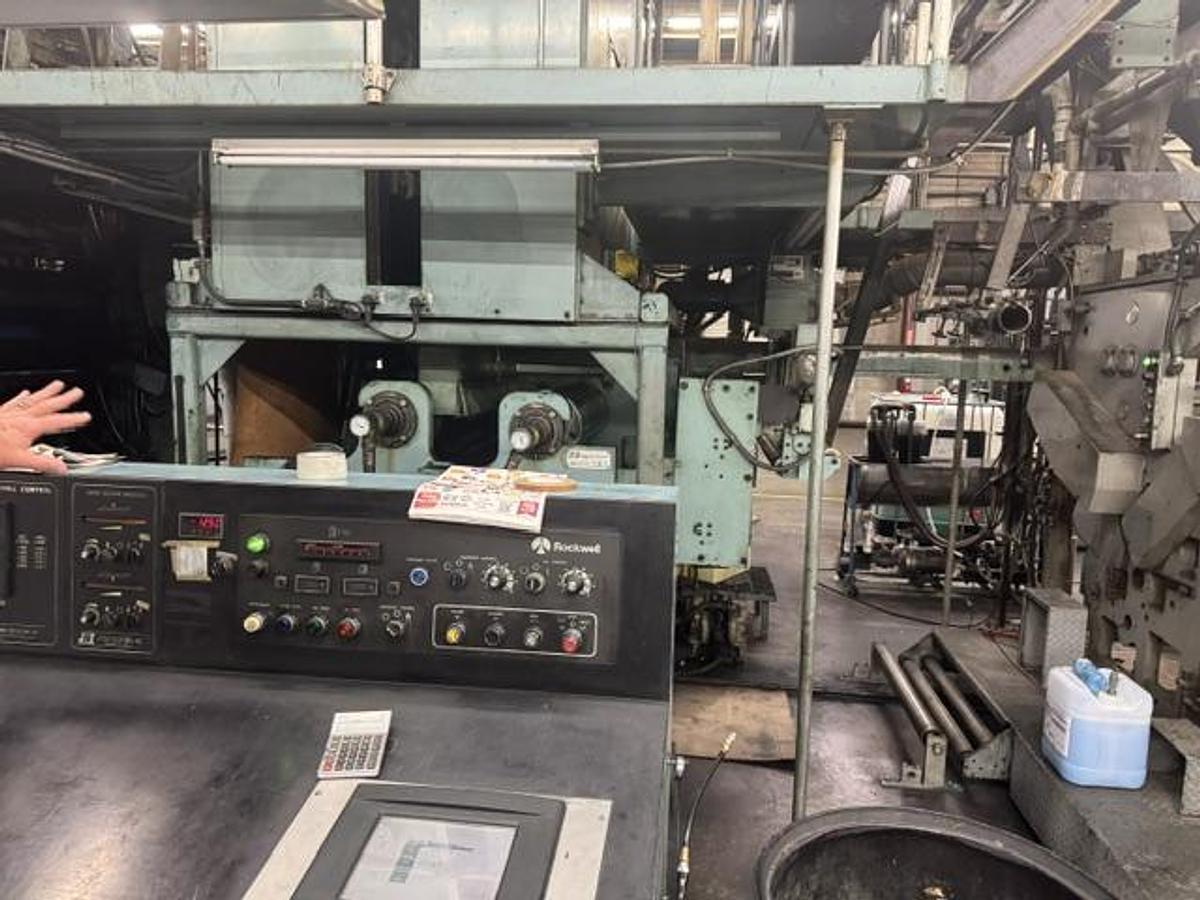

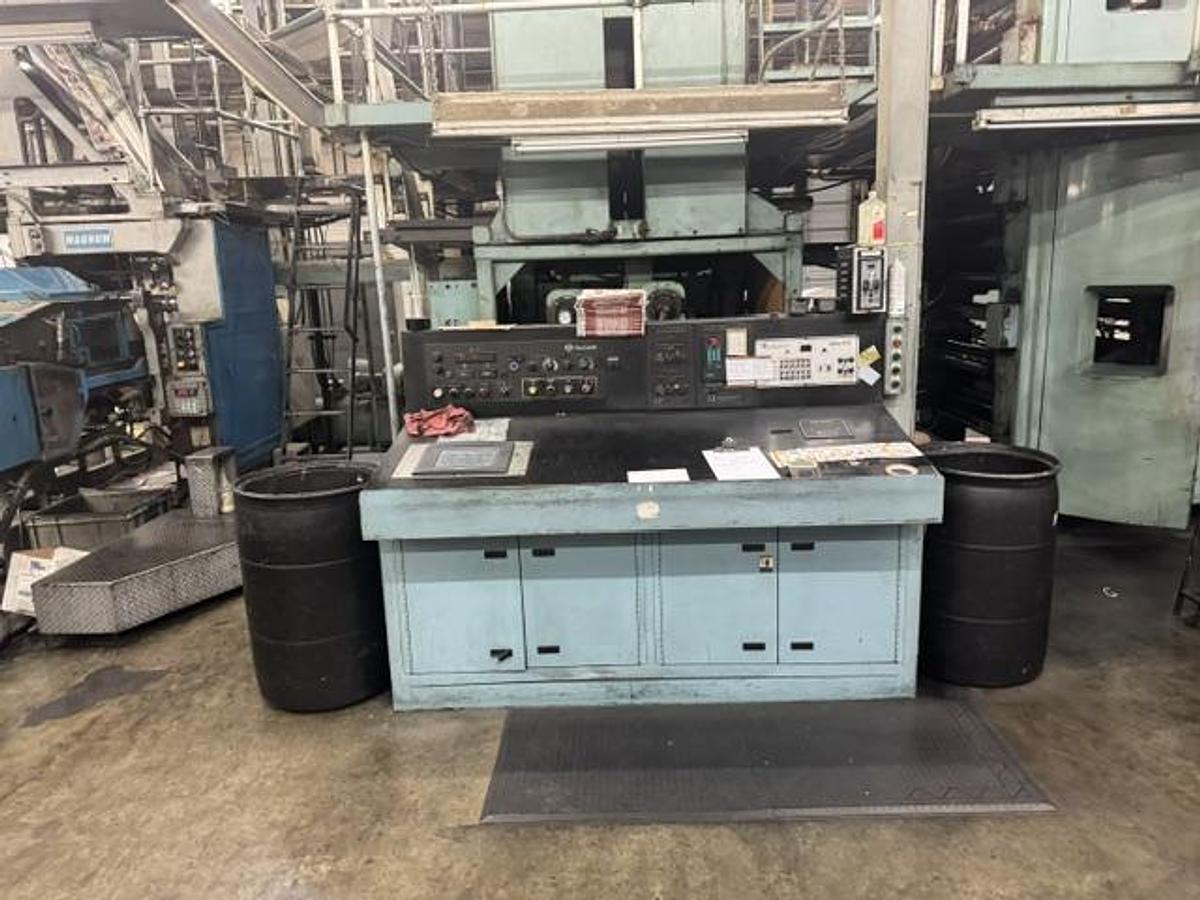

throw offs, console register, manual ink levers, MicroTrak cut-off controls

and WPC web break detection

systems.

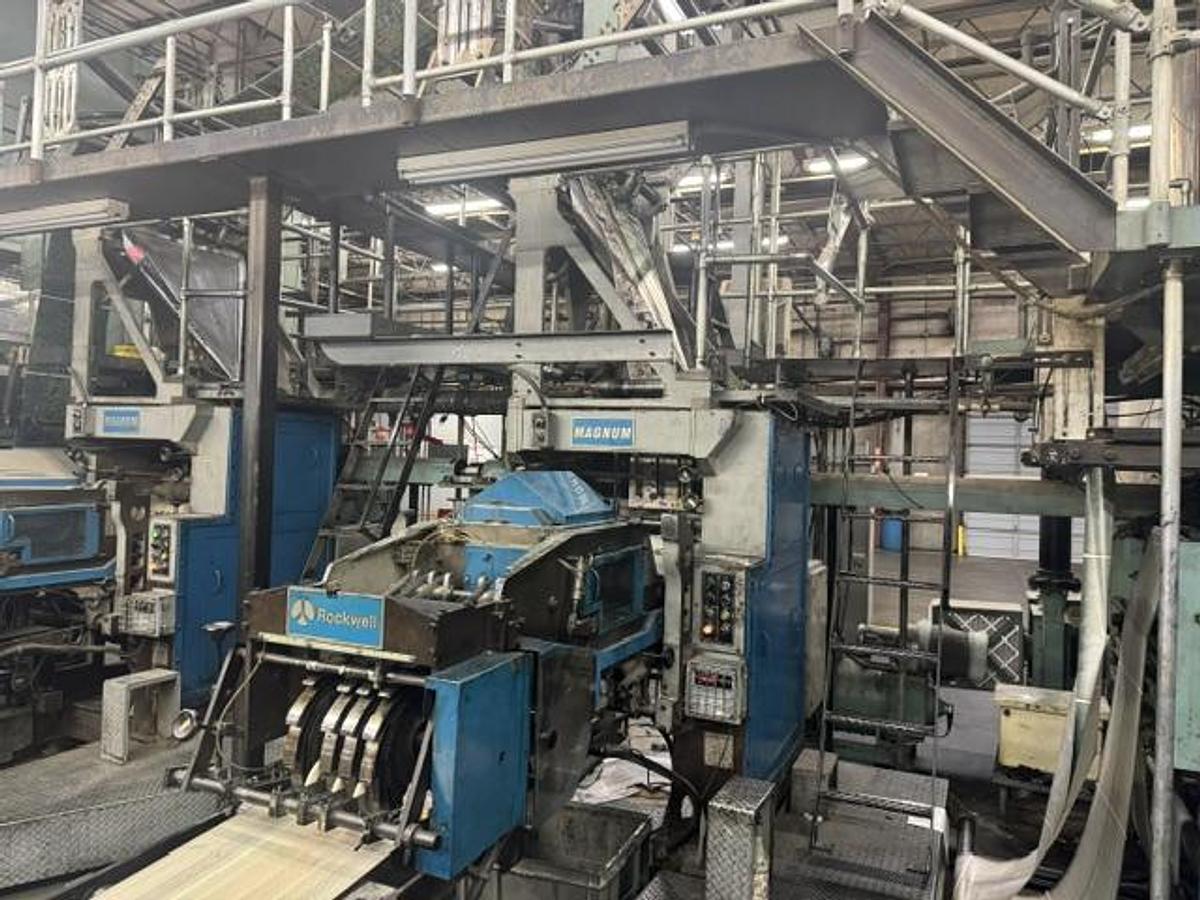

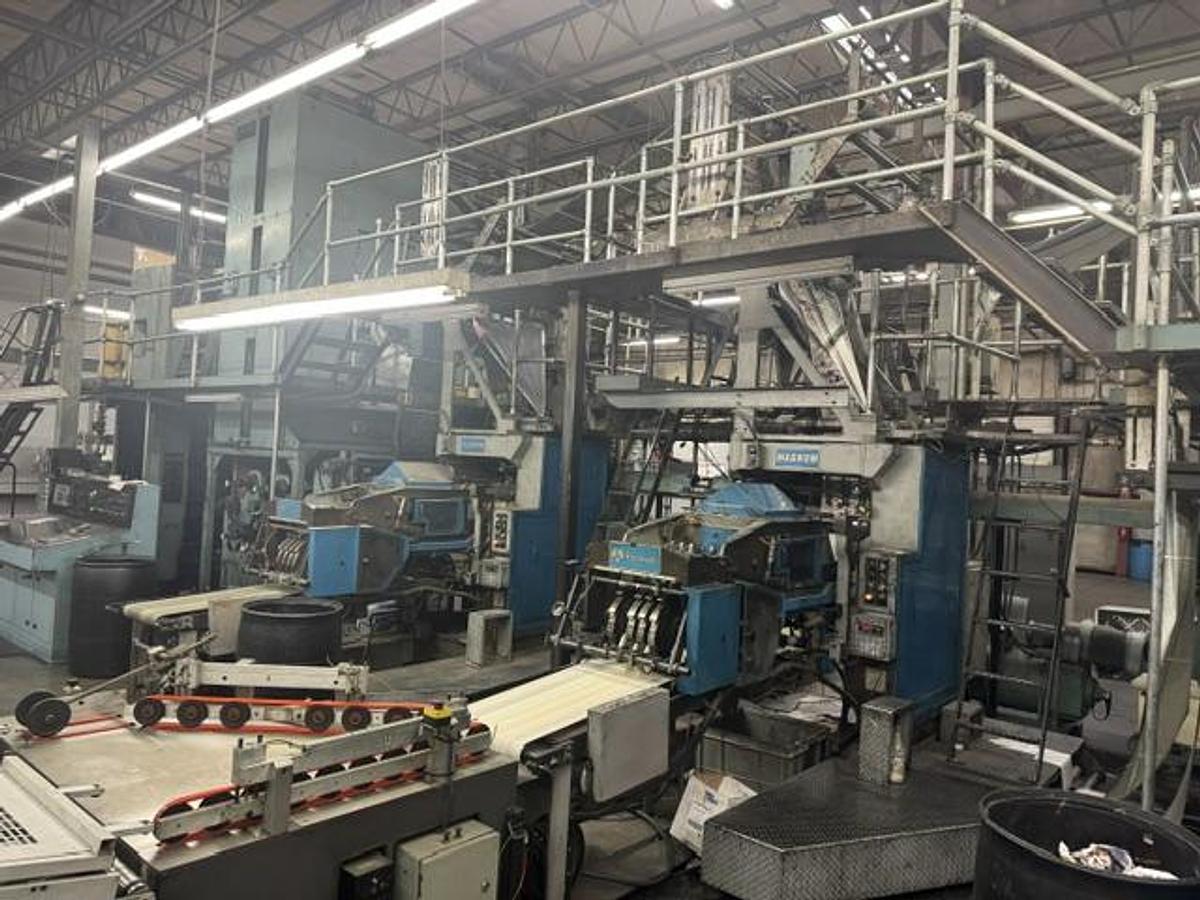

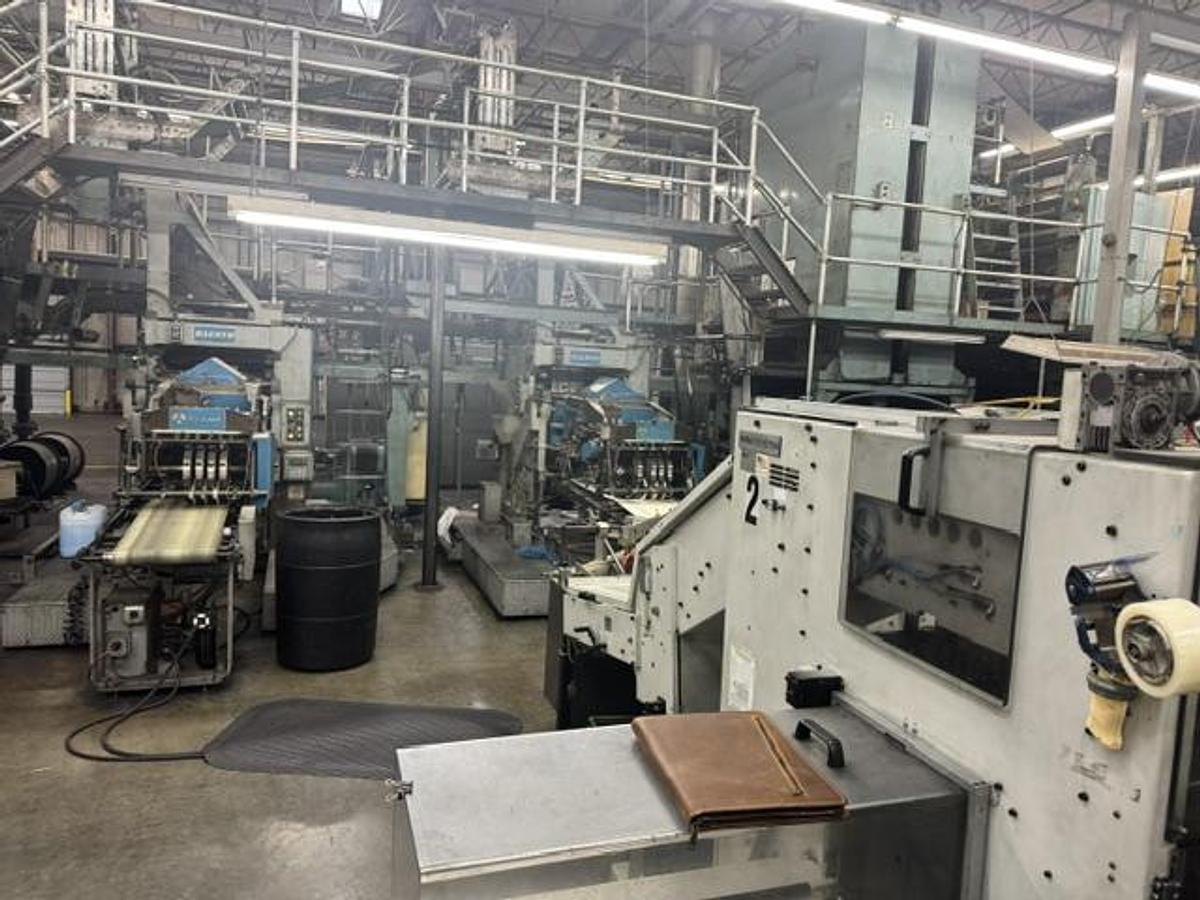

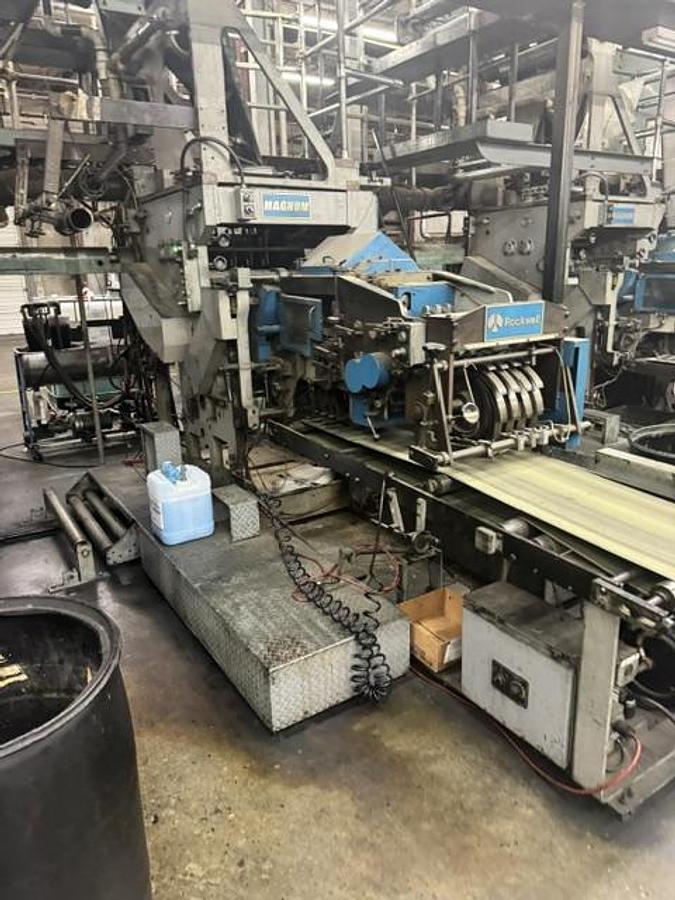

• Two (2) Goss Magnum (C500) 21 inch cut-off folders with quarter fold

capabilities.

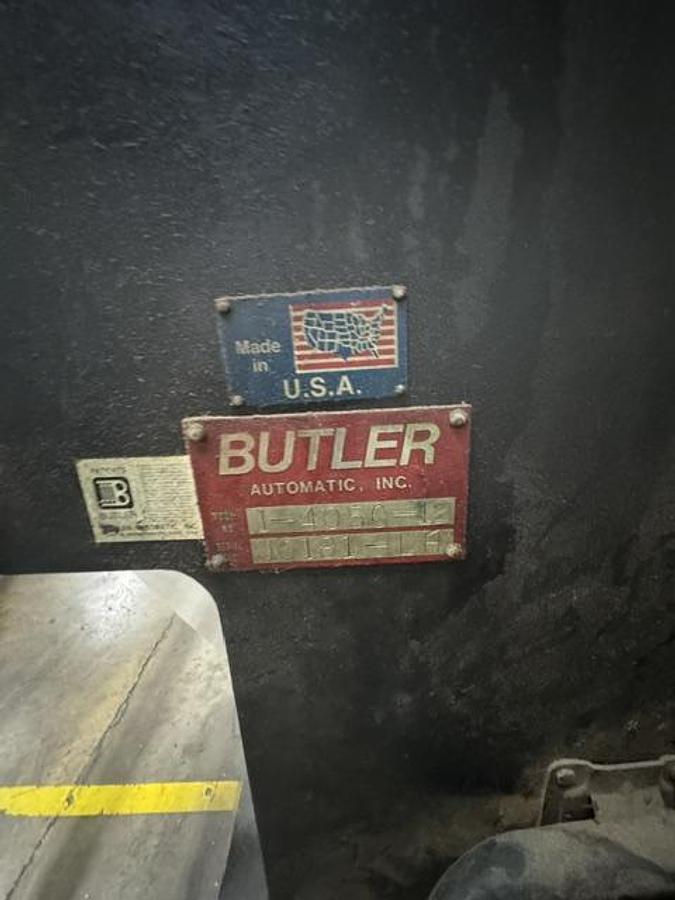

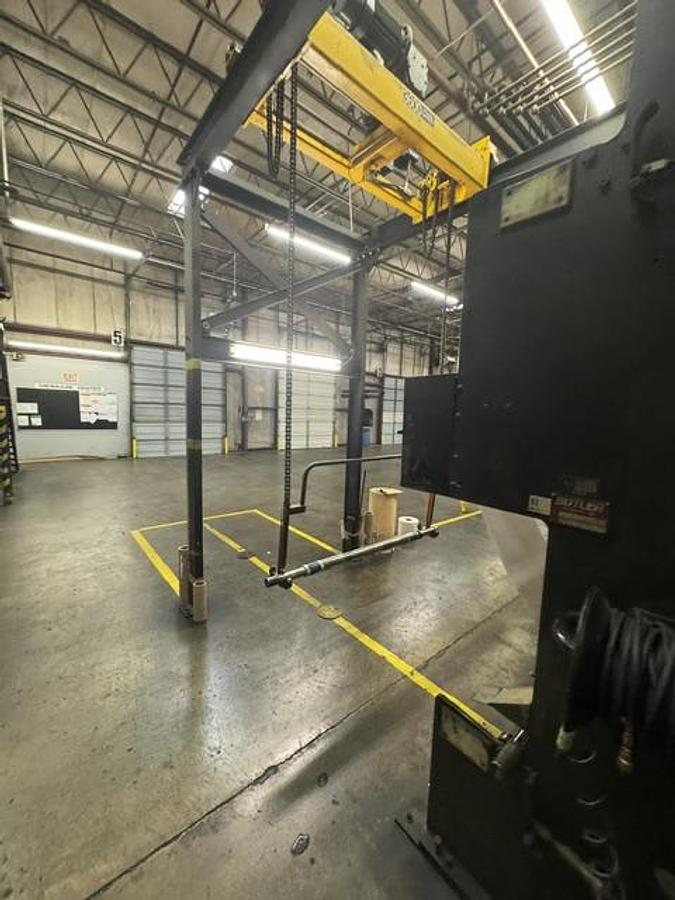

• Two (2) Butler 1000 Series Splicers with 50" diameter roll capacity and

3,600# hoist.

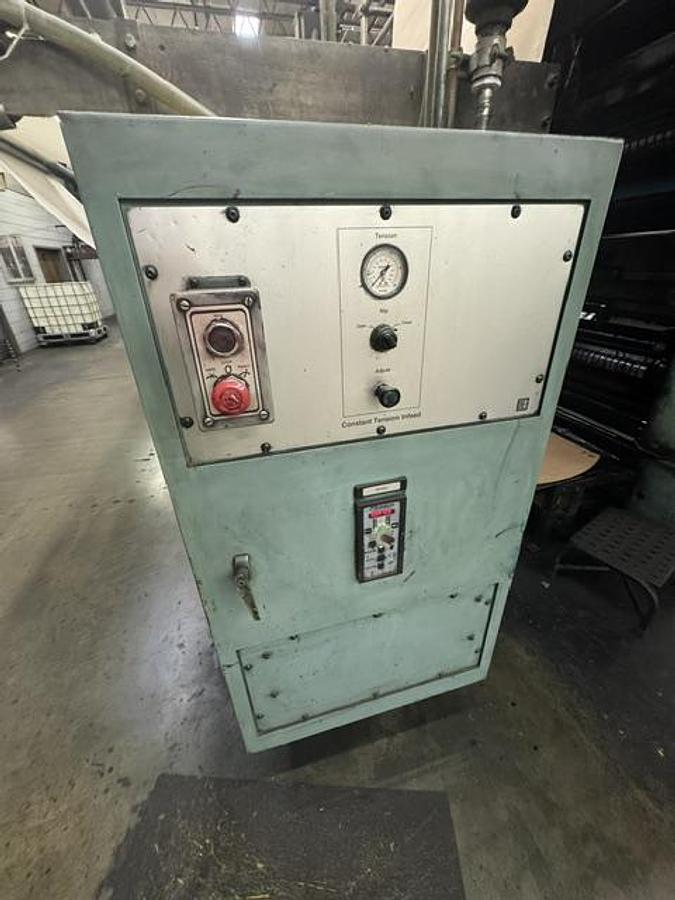

• Two (2) Butler constant tension infeeds with MicroTrak web guides.

• Two (2) ASI 12 ft. vertical dryers with upgraded Parker CTC controllers.

• Two (2) Jardis four (4) roll chill stands with Jardis web guides.

• Two (2) Jardis silicone applicators with automatic mixing station.

• Two (2) single web ribbon decks.

• Three (3) plow folding stations.

• Two (2) Spencer blowers.

II. Auxiliary Press Equipment

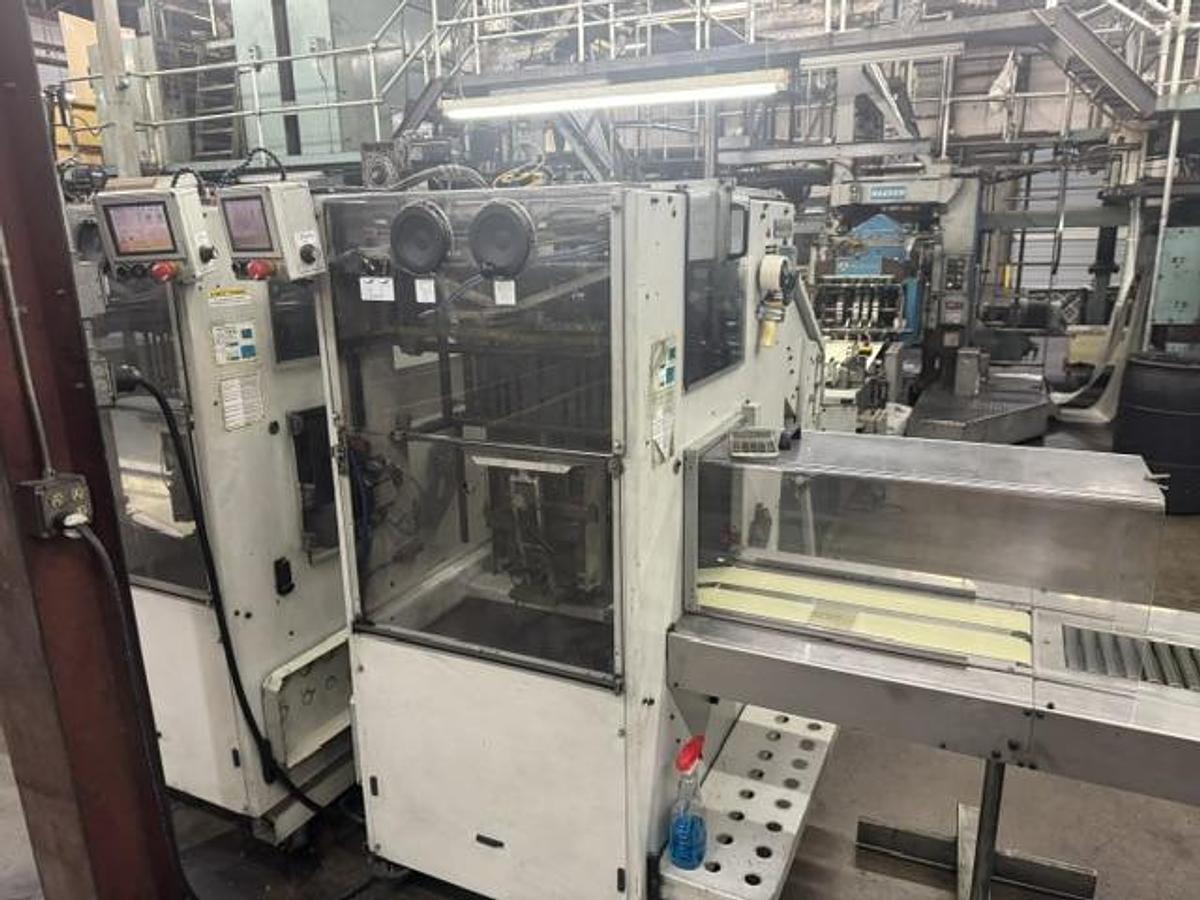

• Four (4) 150 NC Baldwin Stobb brick stackers.

• Four (4) RIMA RS-3610A compensating stackers.

• Five (5) Bunn string tyers.

• Two (2) Signode strapping machines.• Masterflow D2 multi-directional inline stream separator.

• Masterflow D2H inline stream separator.

• Gammerler RS 111 four (4) knife trimmer with Dayton blower / shredder.

III. Miscellaneous Equipment

• Toyota 6000 LB clamp truck (Propane).

• Toyota 6000 LB forklift truck (Propane).

• Caterpillar 5000 LB forklift (Propane).

• Mitsubishi 5000 LB forklift (Propane).

• Crown floor jack (Electric).

• 5000 LB Arlyn floor scale.

• LanTech Q-Series semi-automated stretch wrapping system.

• Two (2) Carrier Aqua Snap four fan / three compressor chillers model # 30RBB0764.

• Balemaster automatic baling system model # B-425-6QU27.

• Quincy 75HP. 125 PSI air compressor model # QMALACA3IE.

• Gardner Denver 75HP. 100 PSI air compressor model # EBM99M03.

• Manchester 500 gallon / 165 PSI compressed air receiving tank.

• Atlas Copco FX-14 compressed air dryer.

• ZEKS 500 HDF compressed air filtration system.

• Two (2) Marathon down-stroke balers.

IV. Pre-Press

(2) Fully Automated CTP Lines

• Two (2) Screen Plate-Rite News 2000S image setters.

• Two (2) Nita Cyclone plate rotators.

• One (1) Nela automatic plate bender with built in punch.

• Three (3) Apple I-Mac workstations.

• TrueFlow fully automated workflow software.

• Oris Color Tuner color proofing system with Ink Saver.

• Epson Sure Color P7000 11 color 24" ink jet with onboard X-rite Spectro Densitometer.

• Two (2) HP Design Jet 800 P.S. color plotters.

• Kyocera Ecosys D8060CDN color printer.

• Dell Dimension 8400 PC with job ticketing software.
