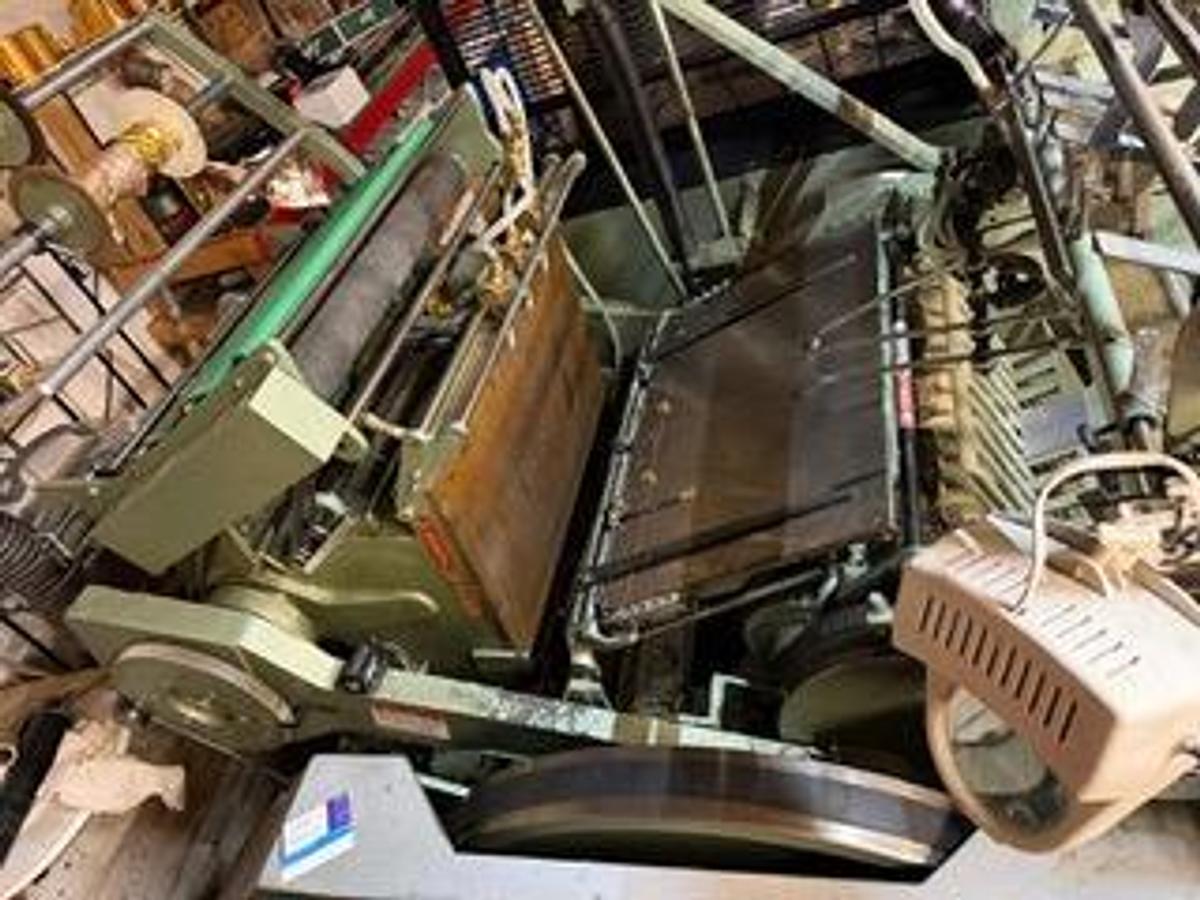

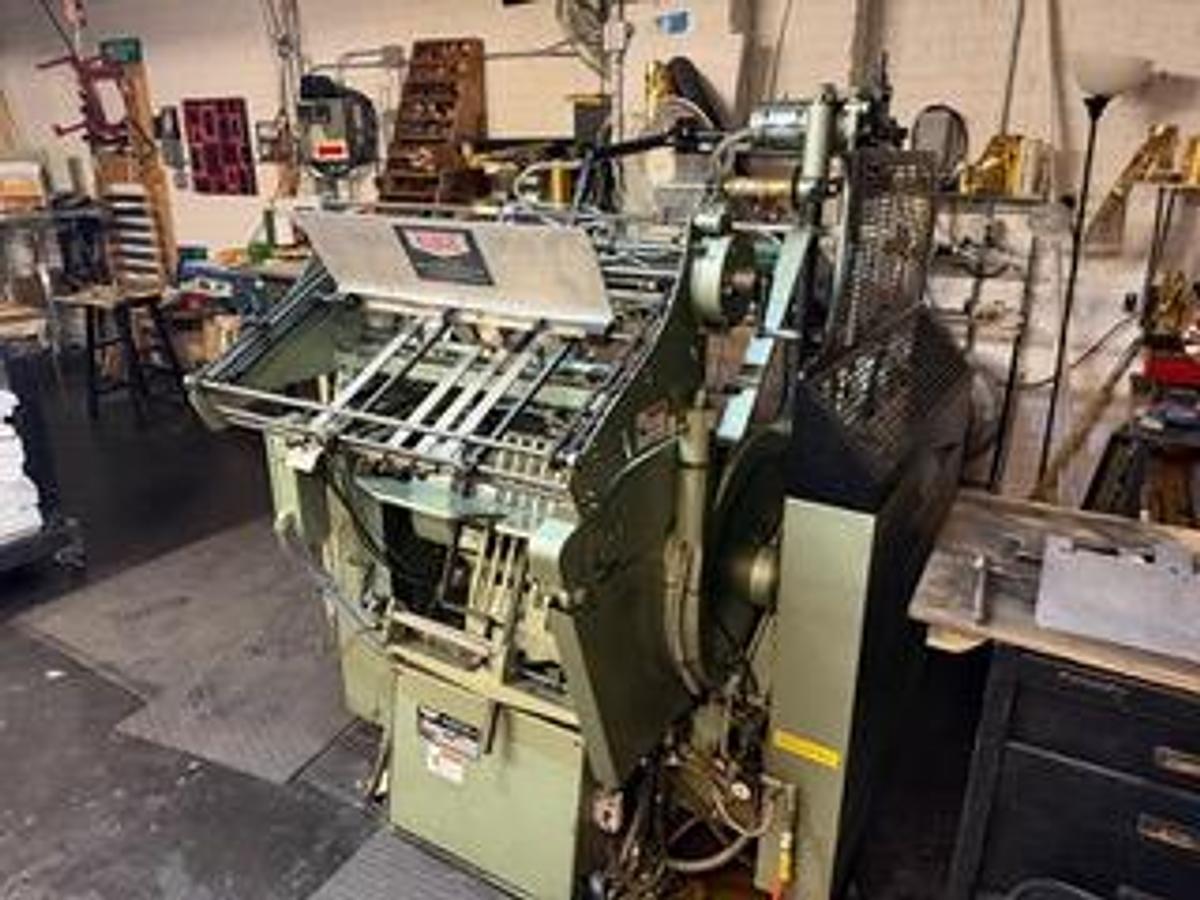

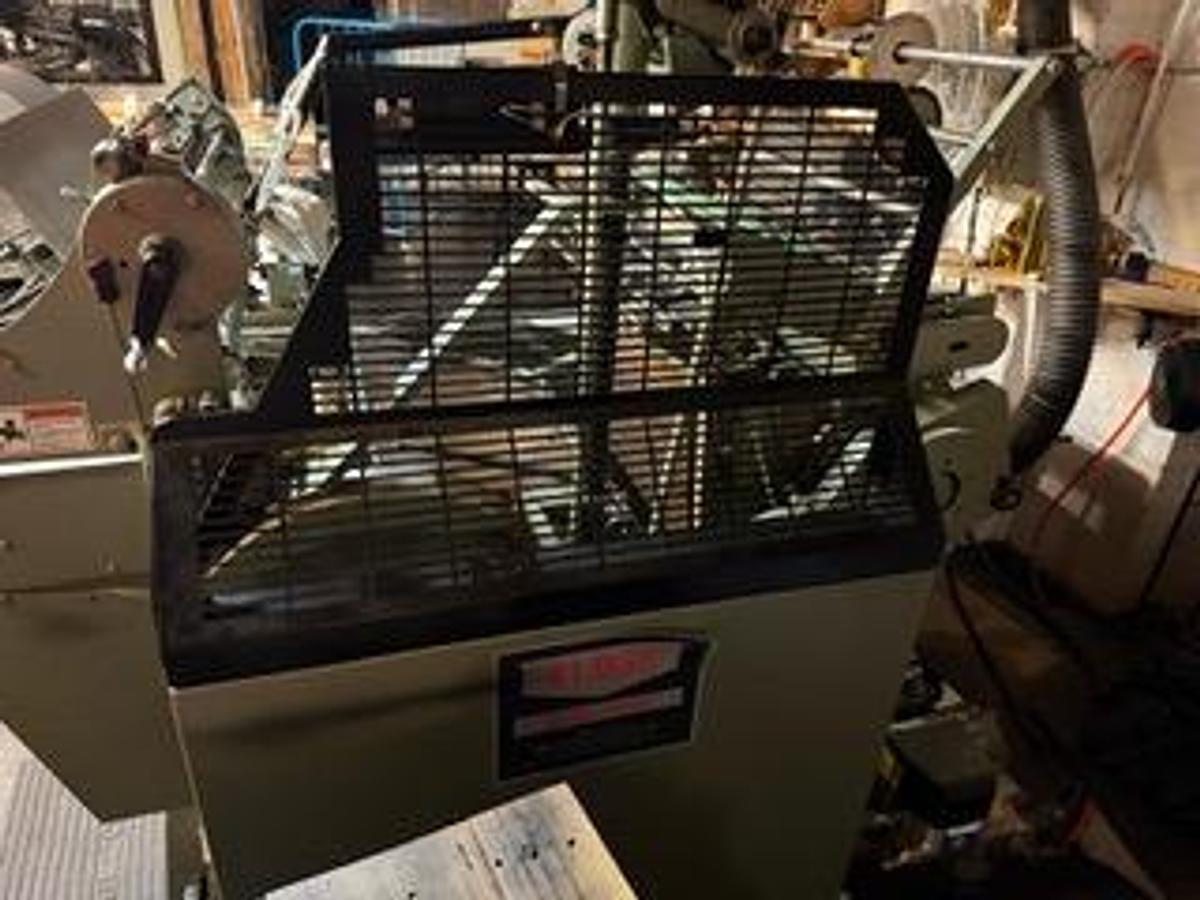

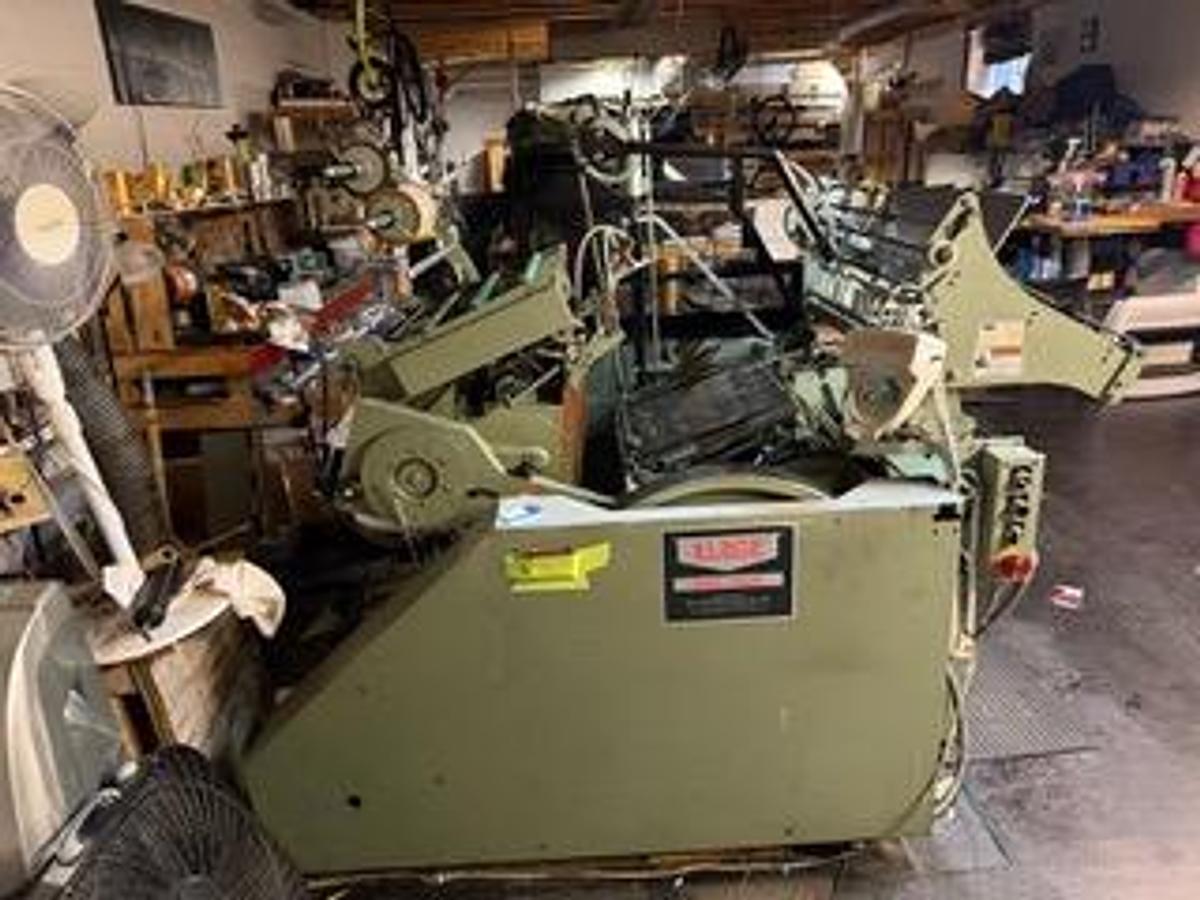

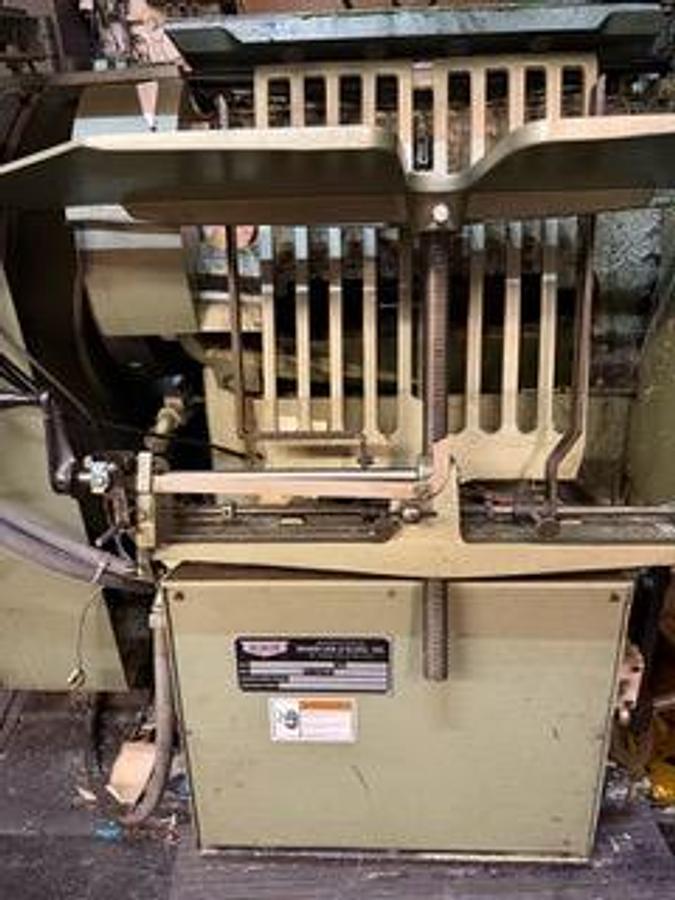

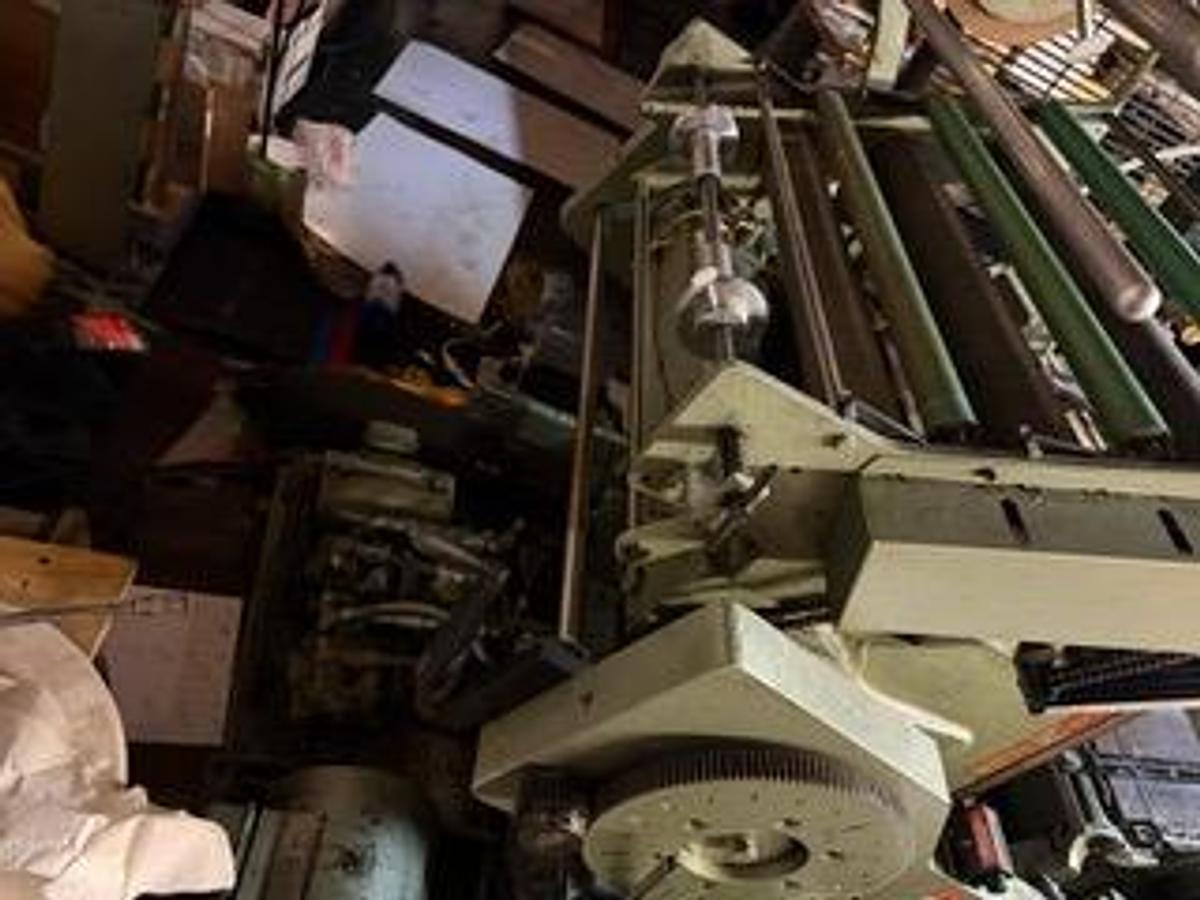

2017 Kluge EHD

Press was completely rebuilt by Kluge in 2017

2 Foil / Emboss

At least 4 die cut chases

EHD Series English

Platen size 14" x 22"

Minimum sheet size

Maximum sheet size*

Magazine Capacity 14''''

Delivery Capacity 14"

Metric

356 x 559 mm

4"x 5"

17"x 24.75"

356 mm

102 x 127 mm

431 x 628 mm

Air 90 psi @ 10cfm

Stock range Onion Skin to .200” board

Inside Chase Dimensions 14"x 22"

356 x 559 mm

Outside Chase Dimensions

16.25" × 23.5"

413 x 597 mm

Main and Back Shaft Diameter 4.375"

111 mm

Maximum operating speed 3,300 iph

Machine power required 3 h.p., A.C. 230/460 volt,

  3 phase, 1800 rpm, 60 cycle

Machine dimensions

74" × 50" × 68"

1880 x 1270 x 1727 mm

Net weight (approx.)

4400 Ibs

1996 kg

Total weight (approx.)

5000 Ibs

2268 kg
