2012 Moll Regal

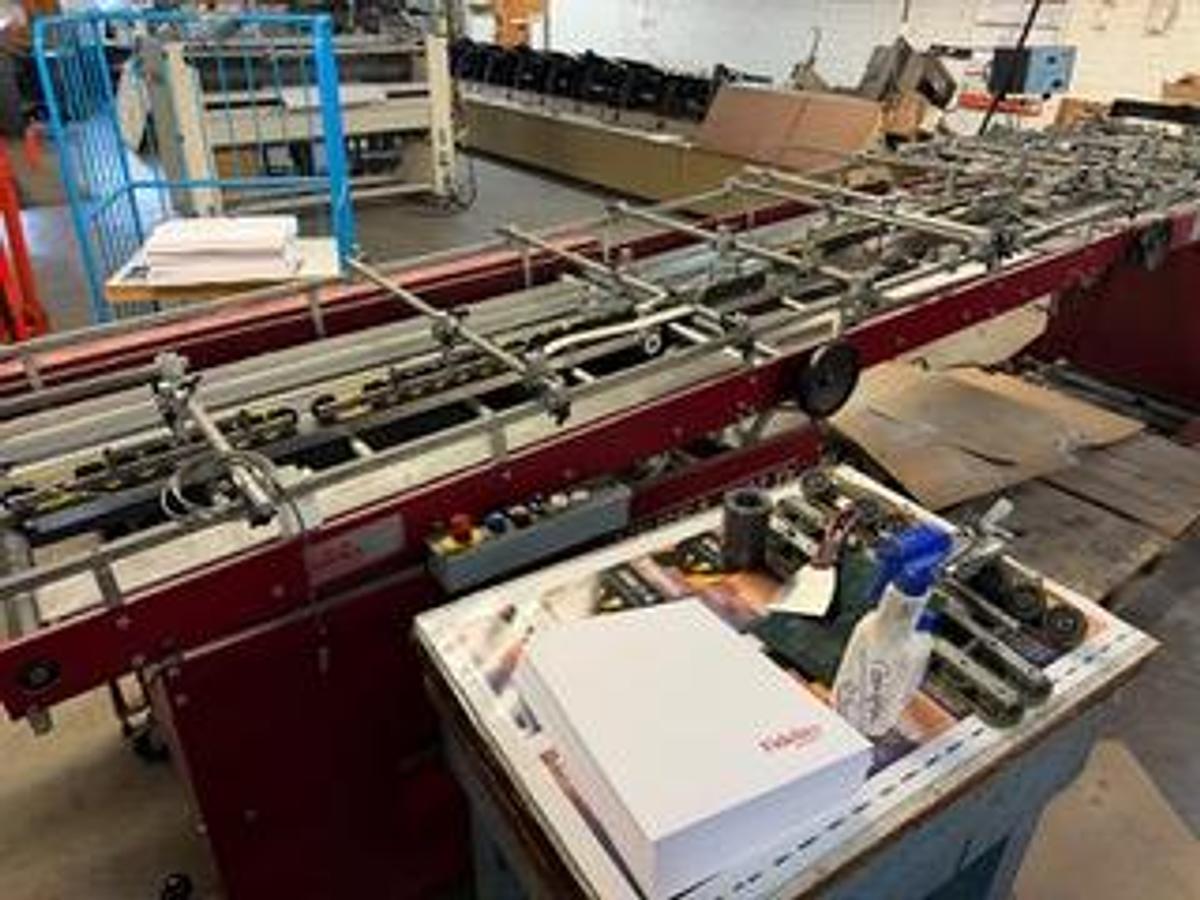

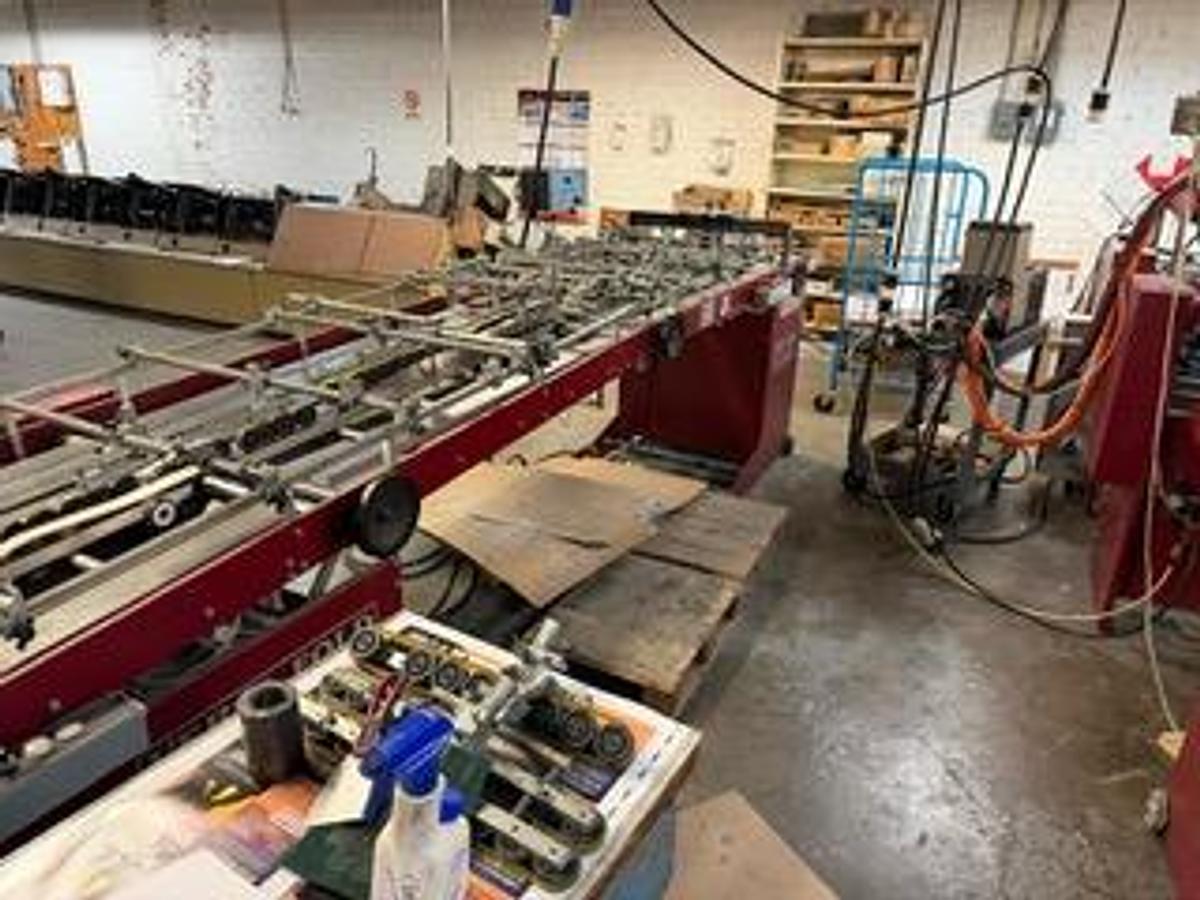

Moll Regal 2012 26" Bottom Friction Feeder

2012 26" Bottom Friction Feeder - Final Fold Unit (Dynamini 2 Line Glue System - with 2 tape heads)

• Moll Regal 2012 26" Bottom Friction Feeder – Final Fold Unit Specifications
• The Moll Regal is a long-in-feed, belt-driven folder/gluer system designed for high-speed, multi-panel folding and gluing. The Final Fold section completes the folding sequence, and the 26" bottom friction feeder is a common configuration for this model.
• Core Specifications
• Stock range: 70 lb cover to 28 pt board (approx. 140–500 g/m²)
• Maximum linear speed: 425 ft/min (130 m/min)
• Feeding system: Bottom friction feeder (26" width) for consistent sheet separation and feeding
• Folding plates: Adjustable buckle fold plates with removable ribs; optional tipper fold plate with dual anti-marking rollers for heavier stocks
• Glue system: Hot melt and/or cold glue compatible
• Power connection: 220V, 3-phase, 30A, 60 Hz; or 400V, 3-phase, 30A, 50 Hz
• Compressed air: ~90 PSI (0.7 MPa)
