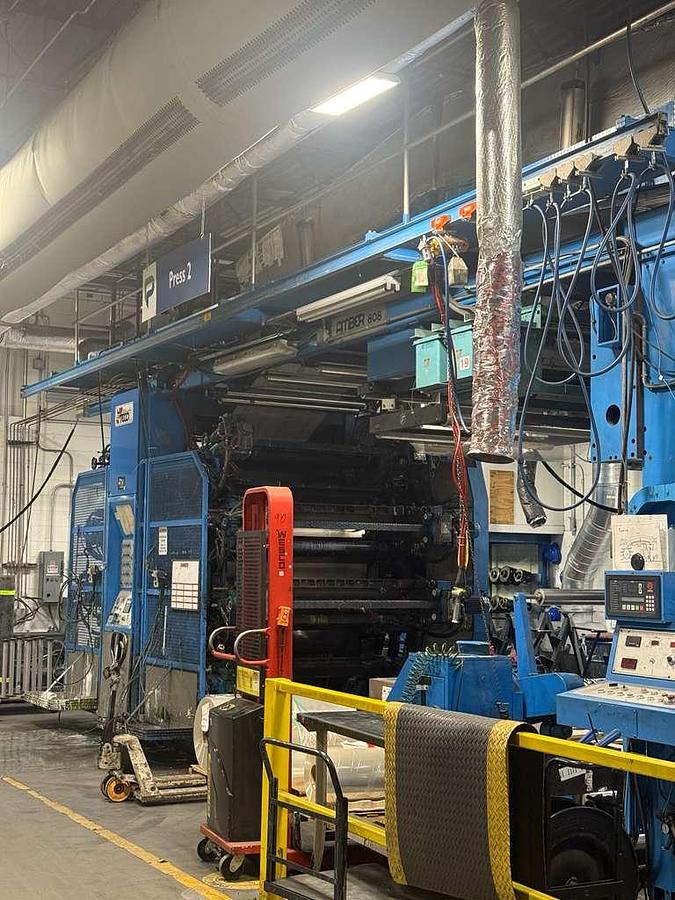

1995 UTECO 140

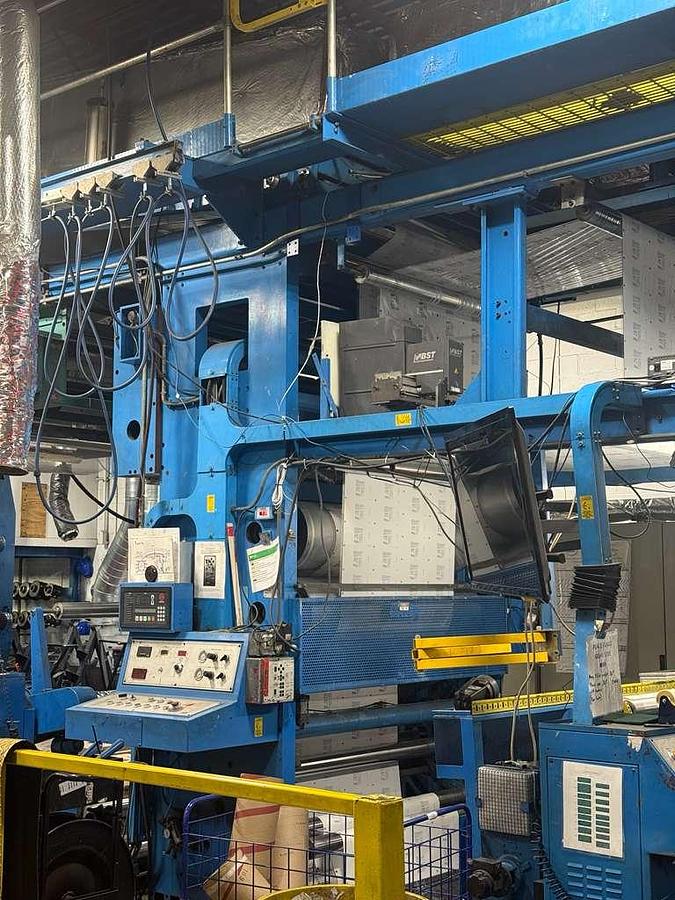

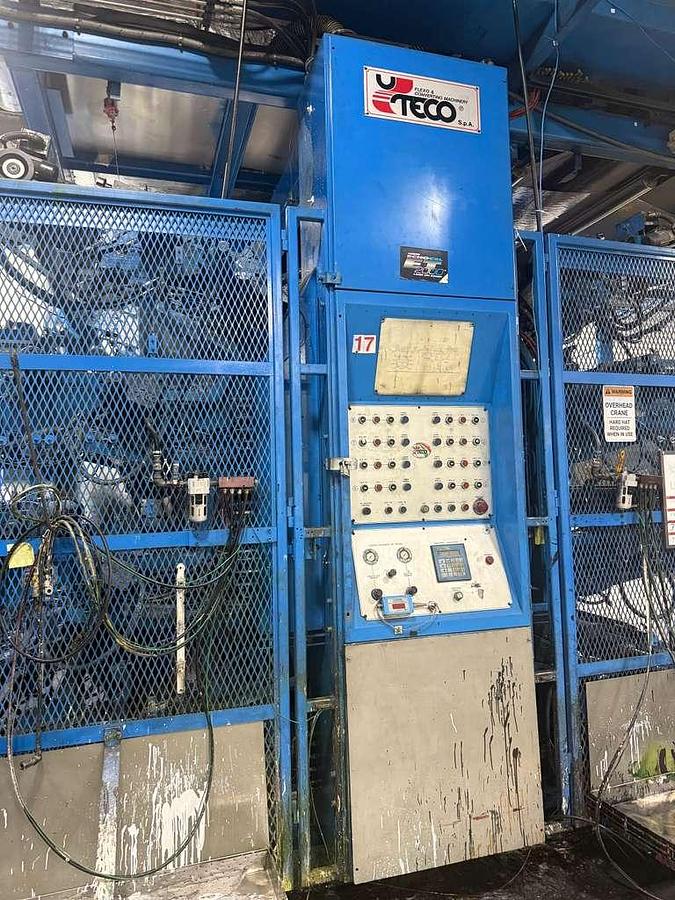

1995 Uteco Amber 808 RR, 8 color, Web width 1450 mm

Manufacturer: Uteco

Machine Type: Amber 808 RR

Model: 140

Manufacture Year: 1995

•

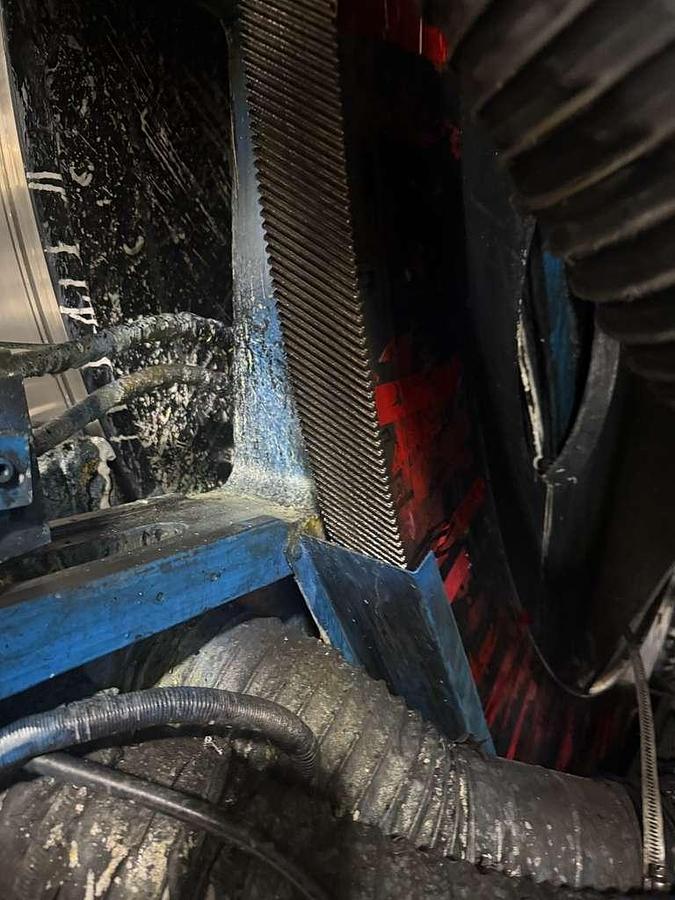

• Gearless/geared: Geared
• Number of colors: 8
• Web width: 1450mm
• Production speed: 250m/min
• Material: PE, PP, LDPE, HDPE, OPP, PET, OPA BOPP, Nylon, Metalized, Composite
• Material thickness: 0.60mm
• Max. mechanical speed: 275m/min
• Drying system: Natural Gas.  Between color deck and tunnel, IMECO

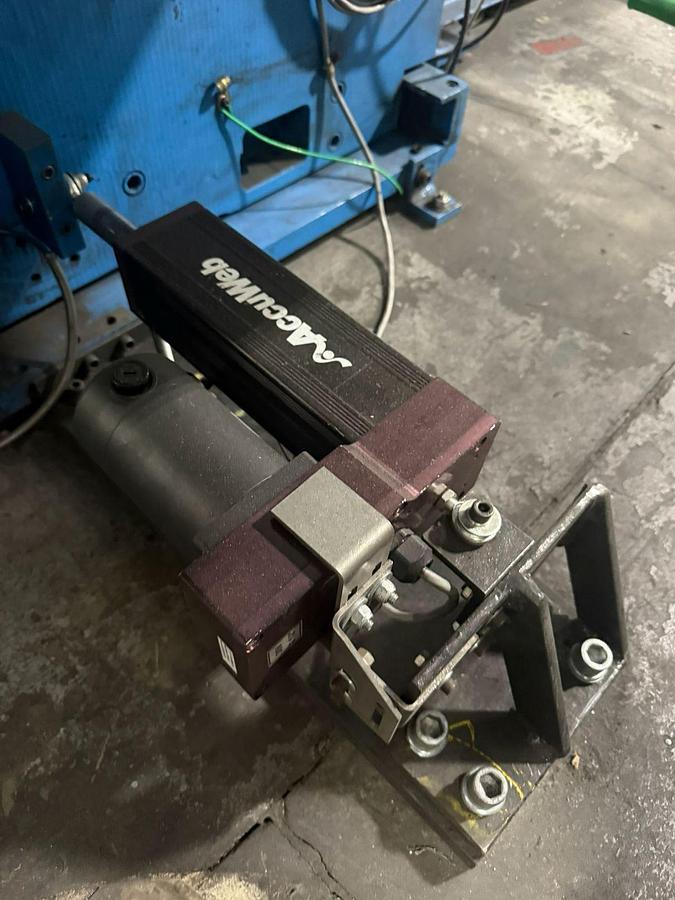

• Web guide system: Coast Controls pneumatic unwind guide model CRPP50; Rewind edge guide BST AccuWeb Micro 1000, actuator MTR3108
• Corona treatment: Enercon corona treater, Station model and serial LM3438-53, 10269-4A
• Doctor blades: 13 doctor blade chambers
• Ink Pumps: 10 Graymills pneumatic pumps
• Autowash: No
• Unwinder diam. max.: 760mm
• Rewinder diam. max.: 715mm

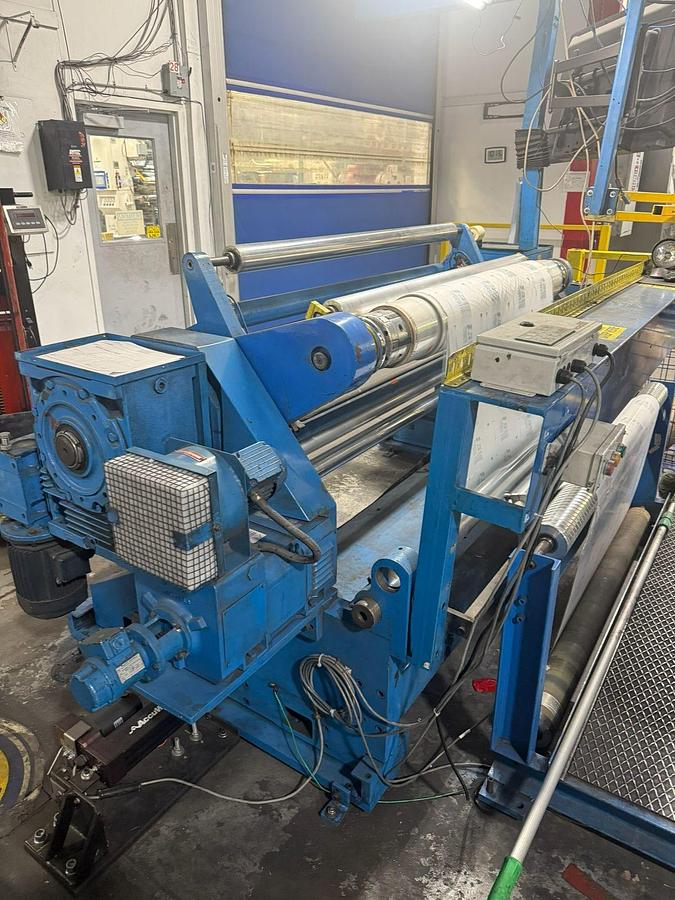

• Rewinder type: Dual shaft rotating
• Out of production, can be tested

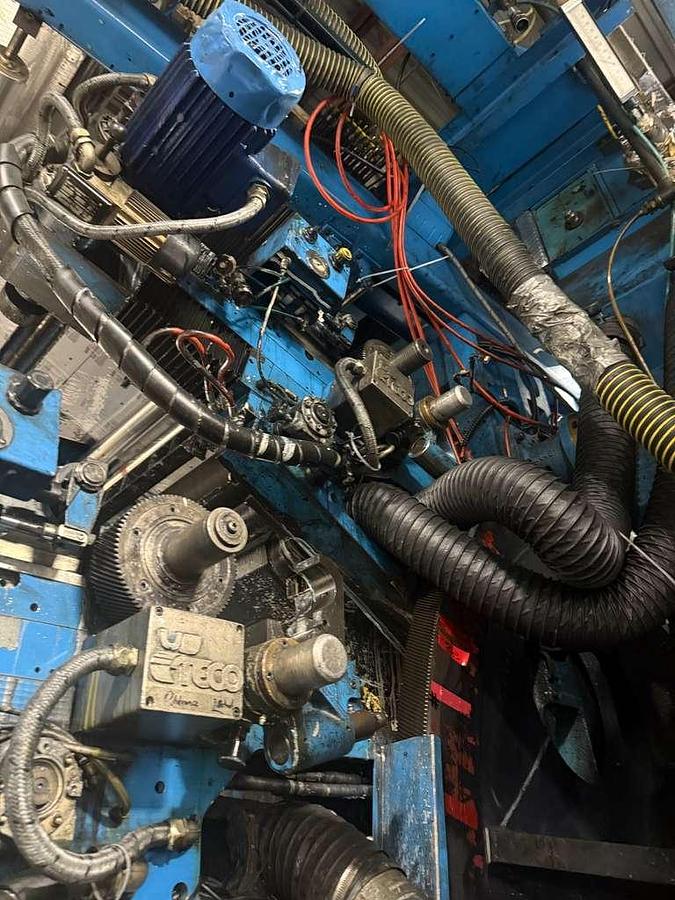

• Hydraulic operated plate cylinder caps, print on/off, anilox drive motors
• 6” and 3” Maxcess External Element Pneumatic Roll Shafts

1. What is the pitch, what is the repeat range - Cylinder sizes are 13.75"-29.5"
2. What is the idler roll diameter - 97mm OD aluminum idler rollers
3. What are the unwind and rewind diameter - 30" or 1500lbs
4. Does the unwind and rewind have non stop splice. - No unwind or rewind splicing

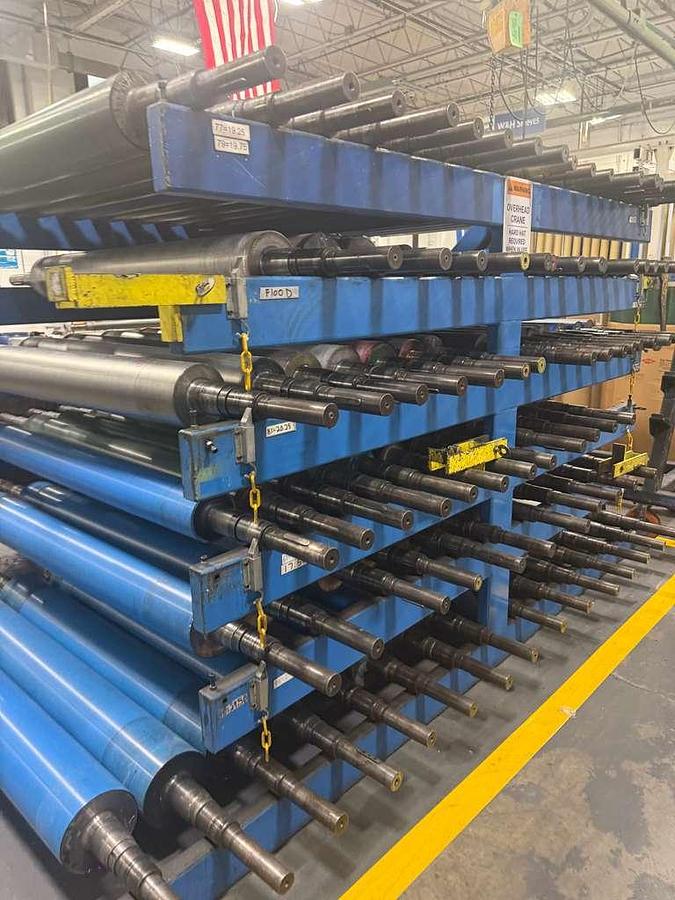

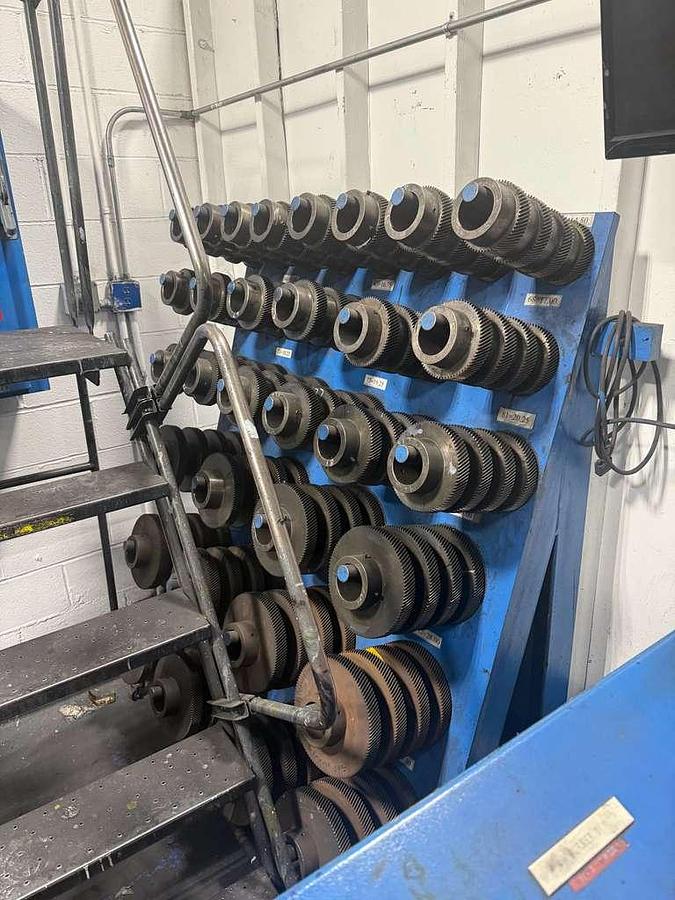

Attached is the cylinder inventory.  Please let them know that the press is 0.25" pitch.

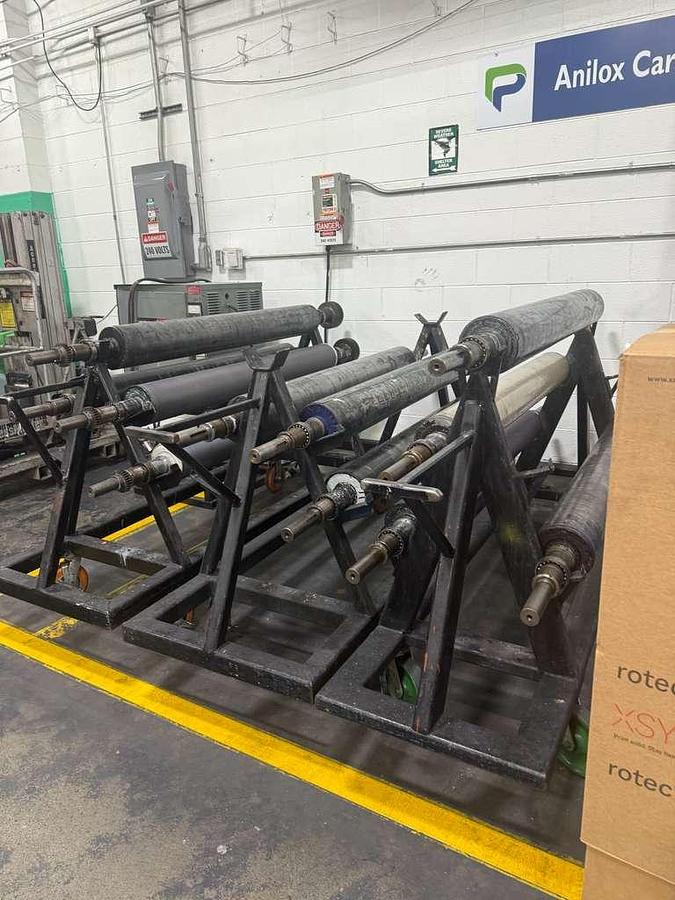

We also have the following anilox inventory:

• 1000 - qty 6
• 600 - qty 2
• 440 - qty 2
• 360 - qty 2
• 300 - qty 3
• 260 - qty 2

we can include the plate mounter for free.  Heaford model MW Cobra 2000.
